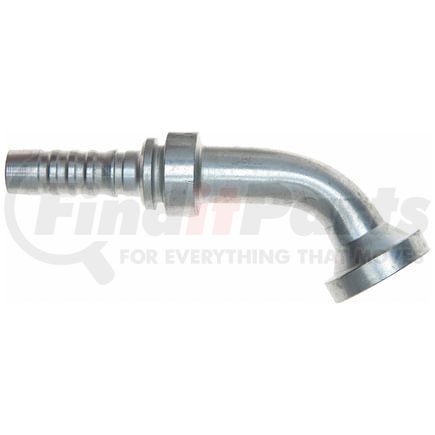

(888) 312-8812 Login SignupGATES G20309-1216 Code 61 O-Ring Flange - 60 Bent Tube (GlobalSpiral)
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G20309-1216 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 60 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20309-1216 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 60 Bent Tube |
| Industrial Description | 12GS-16FL60M |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 1.73 IN |
| Cut-Off Length | 3.35 IN |
| Length | 5.35 IN |
| Inside Diameter | 19.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 43.9 MM |
| Cut-Off Length | 85 MM |
| Length | 135.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053456417 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20309-1216 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AP20FL20, 4S16FLG12 |
| Dayco | 100256, 102146, 1B16FLG12 |
| Goodyear | 28345-1216, 29345-1216, S4-FL60-1216 |
| N/A | 04030963 |
| NAPA | G20309-1216 |
| Parker | 12771-16-12 |
| Weatherhead | 43012EH53, 43012UH53, 43012E-H53, 43012U-H53 |
