GATES G20300-2020 Part Description
Manufacturer
Product Description

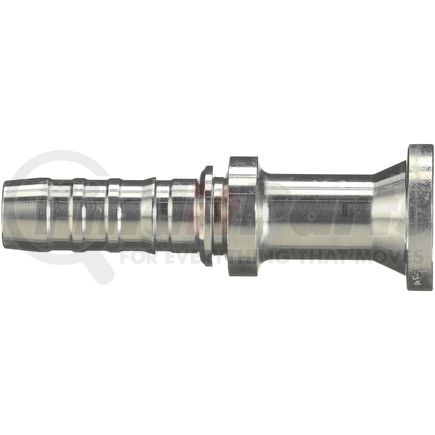

Code 61 O-Ring Flange (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20300-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange |
| Industrial Description | 20GS-20FL |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Cut-Off Length | 2.95 IN |
| Length | 5.75 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Cut-Off Length | 74.9 MM |
| Length | 146.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437676 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20300-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B20FL20, 1E20FL20, 4S20FL20, 6S20FL20 |
| Caterpillar | 155-2867, 1P-1219, 3S-8567, 221-0511 |
| Continental Belt | SG-FL-2020 |
| Dayco | 100099, 102086, 1B20FL20 |
| Goodyear | 28320-2020, 30320-2020, DG-FL-2020, S4-FL-2020 |
| Kurt Hydraulics | C61-20-20-JJ, C61-20-20-W |
| N/A | T7130-2020, 04030920, N20-20FL, C12443310-2020, 4034-2020, 620-1W-G20, M83311-20-20, T9130-2020, VS20-20FL, 6034-2020, T713-2020, T913-2020 |
| NAPA | G20300-2020 |
| Parker | 11571-20-20, 14A73-20-20, 14A78-20-20, 1B20FL20, 11577-20-20 |
| Weatherhead | 43020EG20, 43020UG20, 47020EEG20, 47020EG20, 4SP20WG20, 6SP20WG20, 43020E-G20, 43020U-G20, 47020E-G20 |
