GATES G20240-1620 Part Description
Manufacturer
Product Description

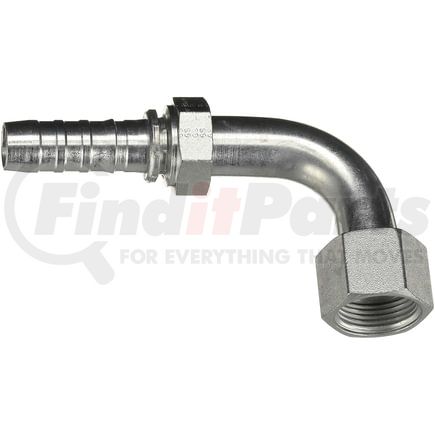

Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20240-1620 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 16GS-20FFORX90M |
| Thread Size | 1 11/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 50 MM |
| Drop Length | 3.07 IN |
| Cut-Off Length | 3.83 IN |
| Length | 6.05 IN |
| Inside Diameter | 25.4 MM |
| Drop Length | 78 MM |
| Cut-Off Length | 97.2 MM |
| Length | 153.7 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053402742 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20240-1620 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1EA20FRB16, 1ZA20FRB16, 4SA20FRB16, 6SA20FRB16 |
| Goodyear | 29715-1620 |
| N/A | 04030883 |
| NAPA | G20240-1620 |
| Parker | 1J978-20-16 |
| Weatherhead | 4SP16WJ50 |
