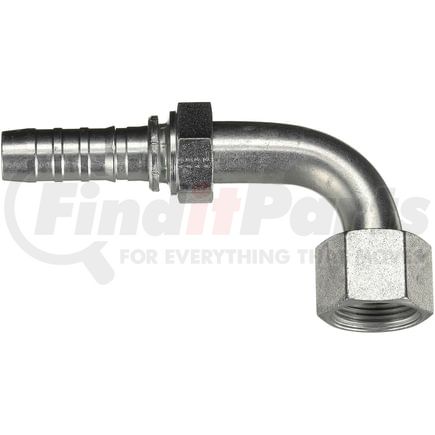

(888) 312-8812 Login SignupGATES G20239-0812 Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$9599
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
GATES G20239-0812 Part Description
Manufacturer
Product Description
Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20239-0812 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 8GS-12FFORX90S |
| Thread Size | 1 3/16-12 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 36 MM |
| Drop Length | 1.89 IN |
| Cut-Off Length | 2.74 IN |
| Length | 4.21 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 48 MM |
| Cut-Off Length | 69.5 MM |
| Length | 106.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053472271 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20239-0812 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101410 |
| Goodyear | 29725-0812 |
| NAPA | G20239-0812 |
