GATES G20234-1212 Part Description
Manufacturer
Product Description

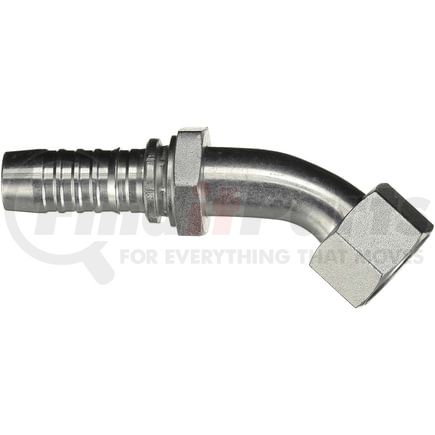

Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20234-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 12GS-12FFORX45S |
| Thread Size | 1 3/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 36 MM |
| Drop Length | .83 IN |
| Cut-Off Length | 2.91 IN |
| Length | 4.92 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 21.1 MM |
| Cut-Off Length | 74 MM |
| Length | 125 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053437591 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20234-1212 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA12FRA12, 1EA12FRA12 |
| Parker | 1J771-12-12, 1J773-12-12, 1J778-12-12, 1J779-12-12 |
| Dayco | 102065, 1BA12FRA12, FJ9901-1212S |
| Weatherhead | 43012EL72, 43012UL72, 47012E52P, 47012EE52P, 4SP12W52P, 4SP12WL72 |
| Goodyear | 28710-1212, 29710-1212, S4-OFFX45-1212, S6-OFFX45-1212 |
| NAPA | G20234-1212 |
