(888) 312-8812 Login SignupGATES G20234-0810 Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
Tap to view 3 more
$6699
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
GATES G20234-0810 Part Description
Manufacturer
Product Description

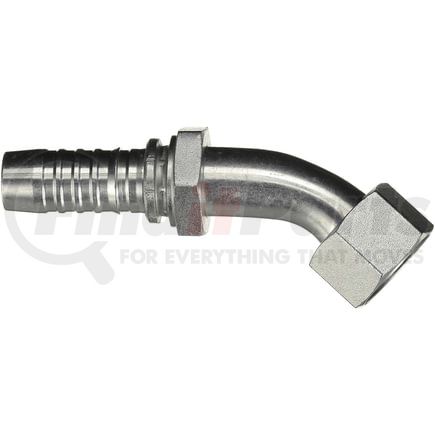

Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20234-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 8GS-10FFORX45S |
| Thread Size | 1-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 30 MM |
| Drop Length | .63 IN |
| Cut-Off Length | 2.42 IN |
| Length | 3.9 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 16 MM |
| Cut-Off Length | 61.5 MM |
| Length | 99.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053630244 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20234-0810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA10FRA8, 4SA10FRA8 |
| Goodyear | 28710-0810, 29710-0810, S4-OFFX45-0810 |
| N/A | 04030844 |
| NAPA | G20234-0810 |
| Parker | 1J771-10-08, 1J771-10-8 |
| Weatherhead | 43008EL70, 43008UL70, 43008E-L70, 43008U-L70 |
