GATES G20230-0810 Part Description
Manufacturer
Product Description

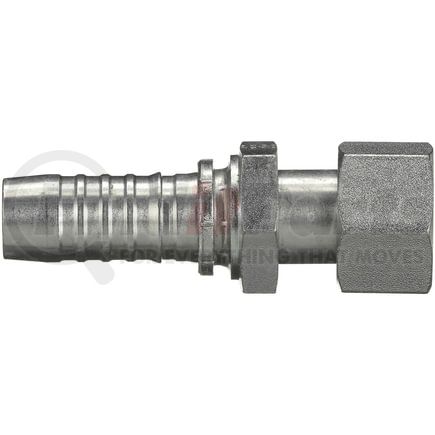

Female Flat-Face O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20230-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Industrial Description | 8GS-10FFORX |
| Thread Size | 1-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 24 MM |
| Nut Hex Size | 30 MM |
| Cut-Off Length | 1.59 IN |
| Length | 3.07 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 40.5 MM |
| Length | 78 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053433913 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20230-0810 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA10FR8, 4SA10FR8 |
| Caterpillar | 155-2856 |
| Continental Belt | SG-OFFX-0810 |
| Dayco | 101329, 1BA10FR8 |
| Goodyear | 28700-0810, 29700-0810, S4-OFFX-0810 |
| N/A | 04030817 |
| NAPA | G20230-0810 |
| Parker | 1JS71-10-08, 1JS71-10-8, 1JS43-10-8, 1JS77-10-8 |
| Weatherhead | 43008ES70, 43008US70, 43008E-S70, 43008U-S70 |
