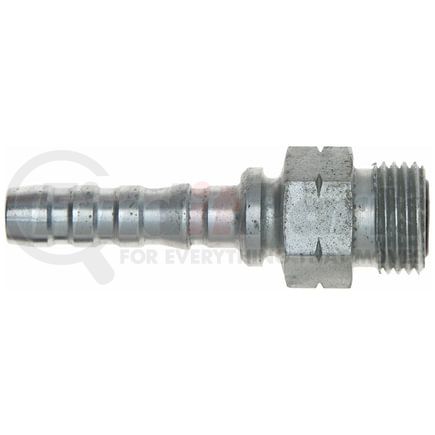

GATES G20225-1616 Part Description
Manufacturer
Product Description
Male Flat-Face O-Ring (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20225-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Flat-Face O-Ring |
| Industrial Description | 16GS-16MFFOR |
| Thread Size | 1 7/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 41 MM |
| Cut-Off Length | 1.78 IN |
| Length | 4.02 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 45.2 MM |
| Length | 102.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053401806 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20225-1616 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 1J071-16-16, 1JM71-16-16 |
| Dayco | 101603 |
| Weatherhead | 43016EE76, 43016UE76, 43016UEE76 |
| Goodyear | 28730-1616, 29730-1616, S4-OFM-1616 |
| NAPA | G20225-1616 |
| Kurt Hydraulics | MF-16-16-W |
