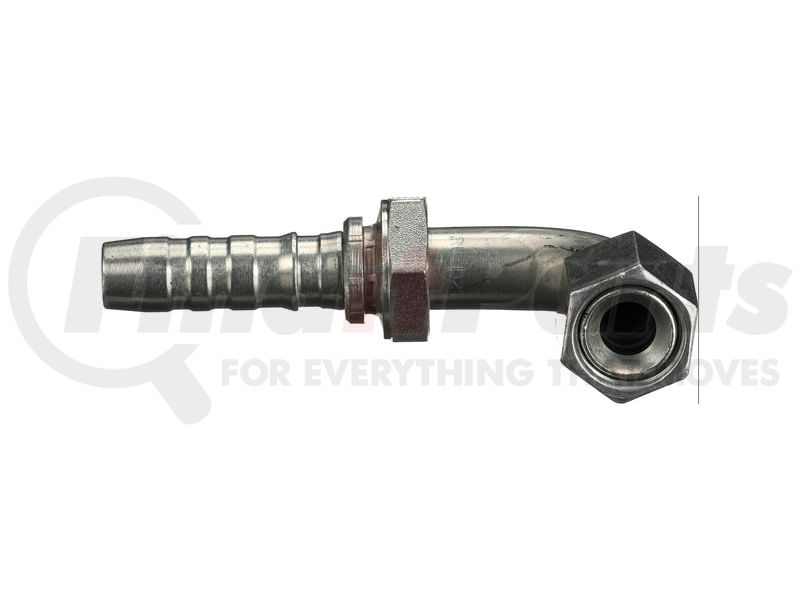

(888) 312-8812 Login SignupGATES G20181-0606 Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$3199
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 16
GATES G20181-0606 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20181-0606 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6GS-6FJX90L |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | .75 IN |

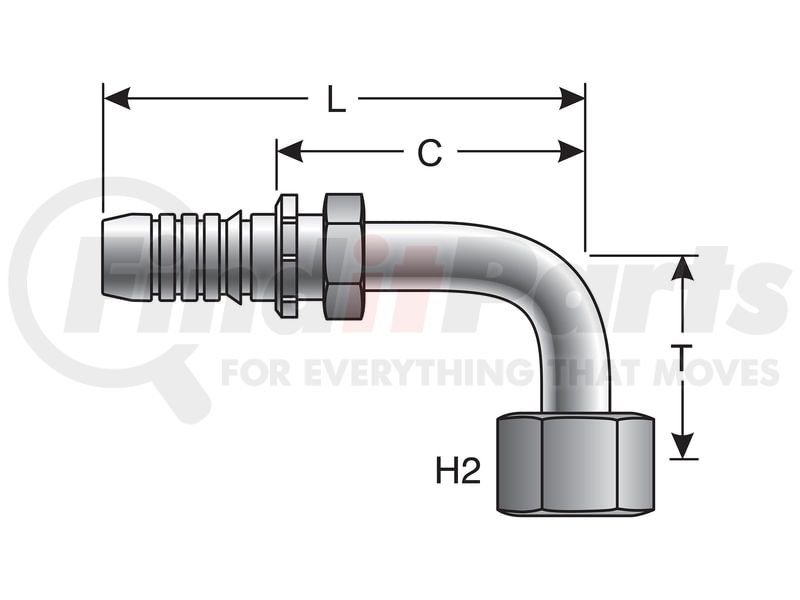

| Drop Length | 2.13 IN |
| Cut-Off Length | 1.98 IN |
| Length | 3.39 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 54.1 MM |
| Cut-Off Length | 50.2 MM |
| Length | 86.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053437522 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20181-0606 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA6FJC6 |
| Parker | 14171-06-06, 14171-6-6 |
| Dayco | 101252, 1BA6FJC6 |
| Goodyear | 28440-0606, 29440-0606, S4-JCFX90L-0606 |
| NAPA | G20181-0606 |
