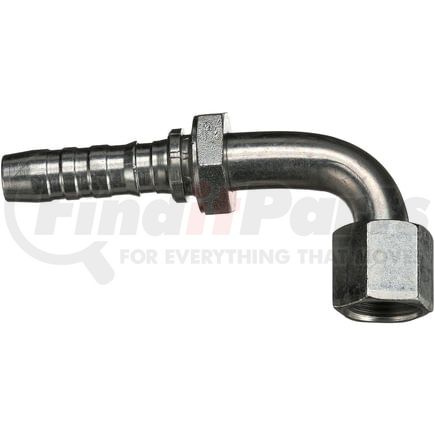

(888) 312-8812 Login SignupGATES G20179-0810 Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$5349
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
GATES G20179-0810 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20179-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 8GS-10FJX90S |
| Thread Size | 7/8-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.0625 IN |
| Drop Length | 1.26 IN |
| Cut-Off Length | 2.15 IN |
| Length | 3.62 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 54.5 MM |
| Length | 92 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053435184 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20179-0810 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 101219, 1BA10FJB8 |
| Goodyear | 29445-0810 |
| NAPA | G20179-0810 |
| Parker | 13971-10-08, 13971-10-8 |
