GATES G20179-0606 Part Description
Manufacturer
Product Description

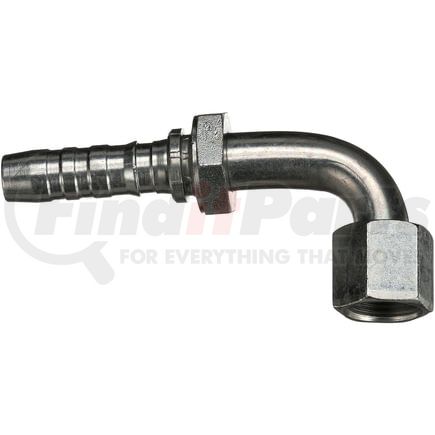

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20179-0606 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6GS-6FJX90S |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | .75 IN |
| Drop Length | .91 IN |
| Cut-Off Length | 1.7 IN |
| Length | 3.11 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 23.1 MM |
| Cut-Off Length | 43.2 MM |
| Length | 79 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053437478 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20179-0606 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA6FJB6 |
| Dayco | 1BA6FJB6 |
| Goodyear | 28425-0606, 29445-0606 |
| NAPA | G20179-0606 |
| Parker | 13971-06-06, 13971-6-6 |
| Weatherhead | 43006U-666 |
