GATES G20174-0810 Part Description
Manufacturer
Product Description

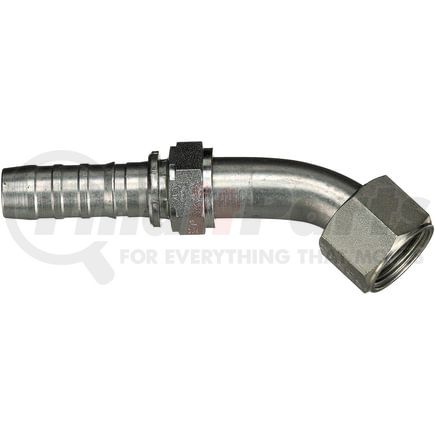

Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20174-0810 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 8GS-10FJX45S |
| Thread Size | 7/8-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.0625 IN |
| Drop Length | .63 IN |
| Cut-Off Length | 2.11 IN |
| Length | 3.58 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 16 MM |
| Cut-Off Length | 53.5 MM |
| Length | 90.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053417388 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20174-0810 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 13771-10-08, 13771-10-8 |
| Weatherhead | 43008E690, 43008U690 |
| Goodyear | 28420-0810, 29420-0810, 36425-0810, S4-JCFX45-0810 |
| NAPA | G20174-0810 |
