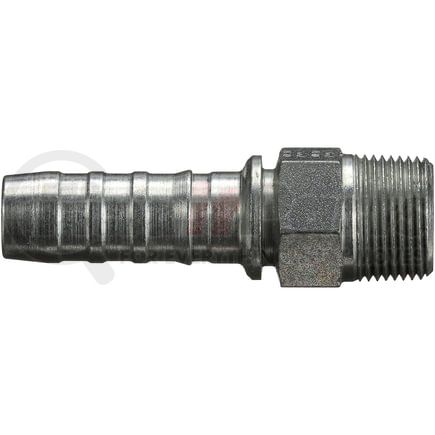

GATES G20100-0808 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20100-0808 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 8GS-8MP |
| Thread Size | 1/2-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | .875 IN |
| Cut-Off Length | 1.44 IN |
| Length | 2.91 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 36.5 MM |
| Length | 73.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053302493 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20100-0808 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA8MP8 |
| Parker | 10170-8-8, 10171-08-08, 10171-8-8, 10177-8-8 |
| Dayco | 1BA8MP8 |
| Weatherhead | 43008E112, 43008U108, 47008E108, 47008E112 |
| Goodyear | 28615-0808, 29615-0808, S4-NPM-0808 |
| NAPA | G20100-0808 |
| Kurt Hydraulics | MP-08-08-W |
