(888) 312-8812 Login SignupGATES C120 Hi-Power II Classical Section Wrapped V-Belt
Tap to view 2 more
$8099
Limited availability at this price!
In Stock
Get it by Friday, Jan 9
GATES C120 Part Description
Manufacturer
Product Description

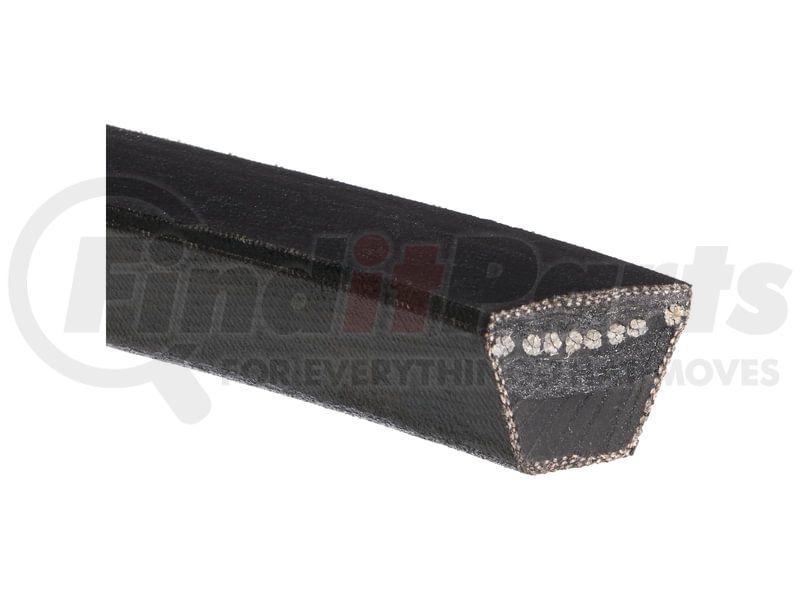

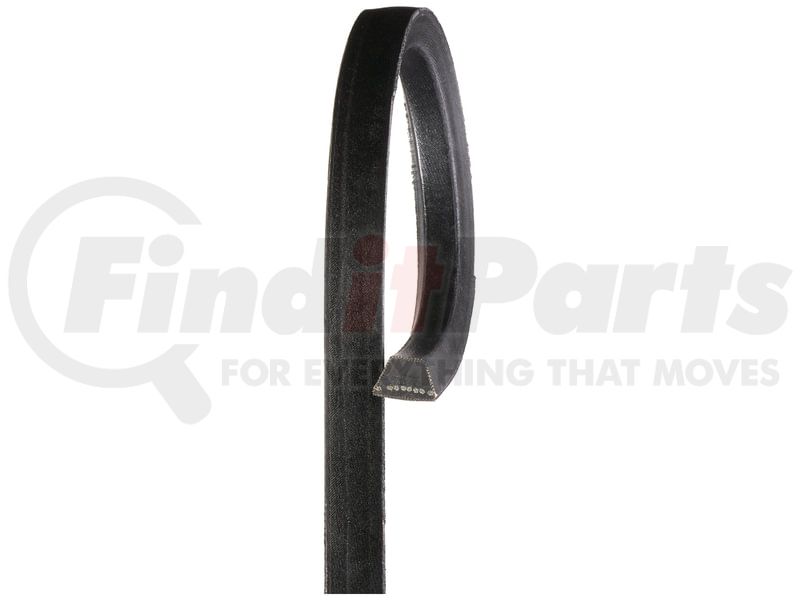

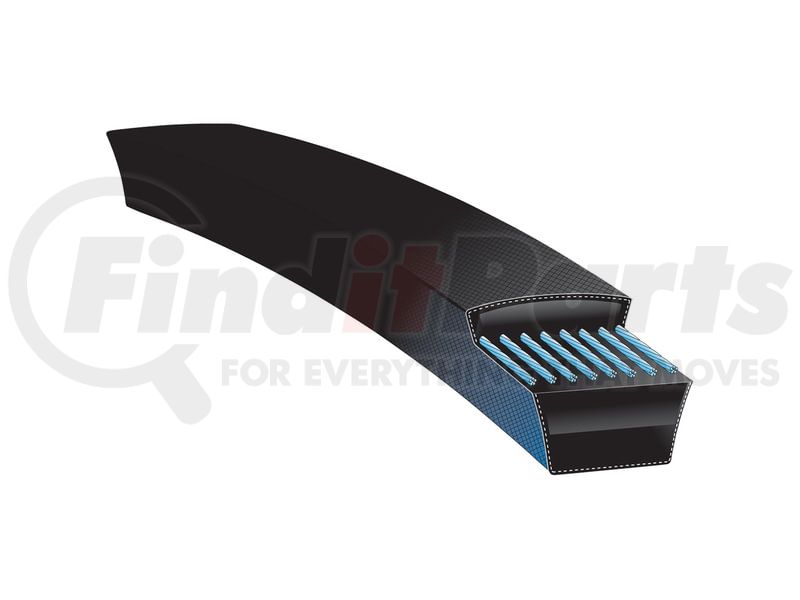

Hi-Power II Classical Section Wrapped V-Belt
Application Summary
Massey Ferguson, 8780, Cummins 6-Cyl. 506 Diesel, Chopper
Features & Benefits
- Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts
GATES C120 Specifications
Product Attributes
| Type | Classical Section Wrapped V-Belt |
| Cross Section Designation | C |
| Strand Quantity | 1 |
| Top Width | .88 in |
| Outside Circumference | 124 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 22 mm |
| Outside Circumference | 3150 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053020021 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES C120 Part Interchanges
| Brand | Part Number |
|---|---|
| White | 312543650, 4061K, 9811440 |
| ACDelco | IC120 |
| Dayco | CP120 |
| CARQUEST | C120 |
| AGCO | 103319M1 |
| Allis Chalmers | 531694, 70531694 |
| Balzer | 7157 |
| Brown Trucks | 311 |
| Browning Manufacturing | C120 |
| Case Tractor | 02631CK |
| CCIL Canada | 54896, J896 |
| Claas | 610197 |
| Claeys | MZ3511 |
| Cockshutt | 9811250 |
| Continental Belt | 1/C120 |
| Deutz-allis | 70531694A |
| Food Machine | RT1152 |
| Gardner Denver | 13C12 |
| International Harvester (IHC) | 312614440 |
| John Deere | P40012, P40278, P40278H |
| Massey Ferguson | 206152M1, 71388712, GK5249, GK5262 |
| Hesston | 055590, 056143, 240861, 258533, 856831, C120 |
| Iowa Manufacturing | 7093011 |
| Leroi | 4173 |
| Mac-Don | 143198 |
| New Holland | 605988, 64248, 64249, 697484 |
| New Idea | K3140 |
| Unit Rig | 10771 |
| Versatile | C08712 |
| Goodyear | 78120, C120 |
| NAPA Belts/Hose | C120 |
| Grainger | 4FH89 |
| HCC | 239169 |
| NAPA | C120 |
| Northwest Engineering | RT3120 |
| Oppel Harvester | I483 |
| PIX | A-C120 |
| Reliance Electric | 107082 |
| U.S. Government | 3030005290386, 3030007351580, 3030008993106, MS392573C120, MS39257C120 |
| <Unknown> | 804001100, BET6 |
| Metric | 22C3150 |
GATES C120 Cross References
We have 1 alternatives for the C120 by GATES:
