GATES part description

Product Description

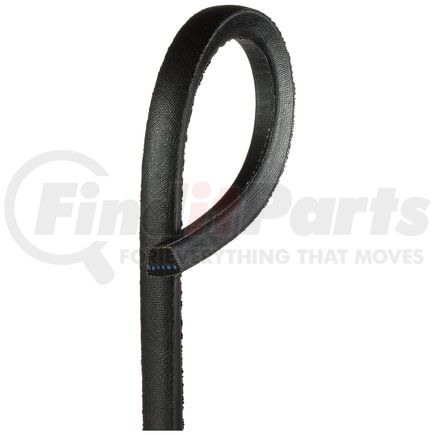

Hi-Power II Classical Section Wrapped V-Belt

Application Summary

Komatsu, WA320, Komatsu S6D105 Diesel, Fan & Alt.

Features & Benefits

  • Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
  • High-quality rubber compound protects the belt against heat, ozone and sunlight
  • Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
  • Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
  • Meets RMA oil and heat resistant standards and static conductivity requirements
  • Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
  • NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts

Product Attributes

Type Classical Section Wrapped V-Belt
Cross Section Designation B
Strand Quantity 1
Top Width .66 in
Outside Circumference 60 in
Construction Wrapped
9837 No
Belt Material EPDM
Cord Material Polyester
Top Width 17 mm
Outside Circumference 1524 mm

Additional Information

Harmonized Tariff Code (Schedule B) 4010323000
Country of Origin (Primary) MX
UPC 00072053019414
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

GATES B57 Cross Reference

We have 1 alternatives for the B57 by GATES:
