GATES part description

Product Description

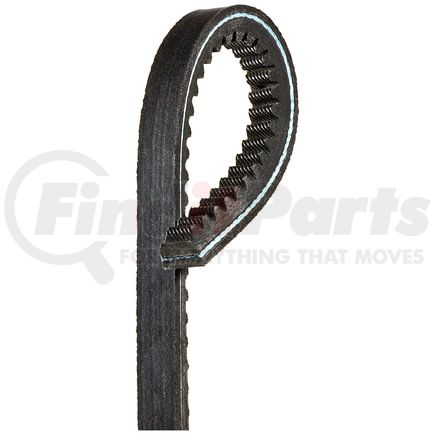

Tri-Power Classical Section Molded Notch V-Belt

Features & Benefits

  • Belt edge is machined for even pulley groove contact, resulting in less slippage and wear for smoother running
  • Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
  • Cross-oriented, fiber-loaded rubber compound for flexibility and stability
  • Notches molded into the belt during manufacturing make this belt well suited for drives with smaller diameter pulleys
  • Meets RMA oil and heat resistant standards and static conductivity requirements
  • Temperature Range: -58 Deg. F to +248 Deg. F (-50 Deg. C to +120 Deg. C)
  • Note: Available in AX, BX, and CX cross-sections as well as Tri-Power PowerBand joined V-belts

Product Attributes

Type Classical Section Molded Notch V-Belt
Cross Section Designation AX
Strand Quantity 1
Top Width .5 in
Outside Circumference 24 in
Construction Notched
9837 Yes
Belt Material EPDM
Cord Material Polyester
Top Width 13 mm
Outside Circumference 610 mm

Additional Information

Harmonized Tariff Code (Schedule B) 4010391000
Country of Origin (Primary) US
UPC 00072053513103
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

GATES AX22 Cross Reference

We have 1 alternatives for the AX22 by GATES:
