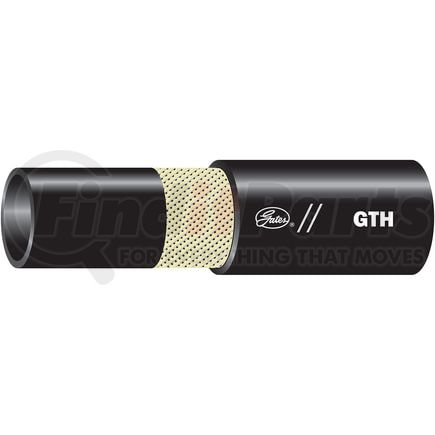

Gates 86695 - GTH High -Temp 1-Fiber Braid Hose - SAE 100R6
$30149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
GTH High -Temp 1-Fiber Braid Hose - SAE 100R6
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Power Crimp Couplings
- Meets or exceeds requirements of SAE 100R6
- Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
Product Attributes
| Product Type | GTH High-Temp 1-Fiber Braid Hose - SAE 100R6 |
| Industrial Description | 10GTHX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 350 PS |
| Burst Pressure | 1400 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (Constant) and +300 Deg. F (Intermittent) |
| Length | 25 FT |
| 9941 | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .91 IN |
| 9879 | 5 |
| 9835 | 15 INHG |
| Tube Description | Black, Specially Compounded, Synthetic Rubber |
| Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Cover Color | Black |
| 9856 | MegaCrimp |
| 9453 | 100R6 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053787351 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
