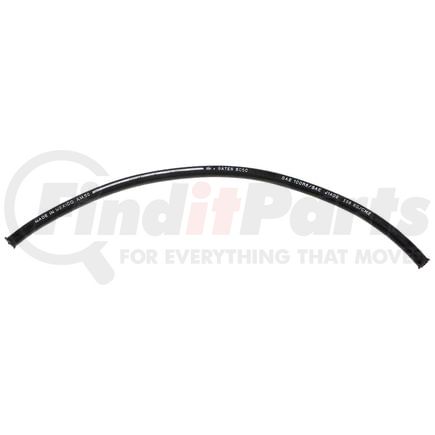

Gates 86606 - C5C Hydraulic Hose - SAE 100R5
$46249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
C5C Hydraulic Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106-74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106–74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Avoid continuous use at maximum temperature concurrent with maximum working pressures
- Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
Product Attributes
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Industrial Description | 5C5CX50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air) |
| Length | 50 FT |
| 9941 | 5 |
| Inside Diameter | .25 IN |
| Outside Diameter | .58 IN |
| 9879 | 3.4 IN |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Hose Material | Neoprene - Type A |
| Reinforcement Material | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| 9856 | C5 Field Attachable, C5X Field Attachable |
| 9453 | 100R5 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053341799 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
