Name: Gates 85973 CL12-LOL PLUS
SKU: 85973
Price: 50.49 USD
Availability: InStock

GATES 85973 Part Description

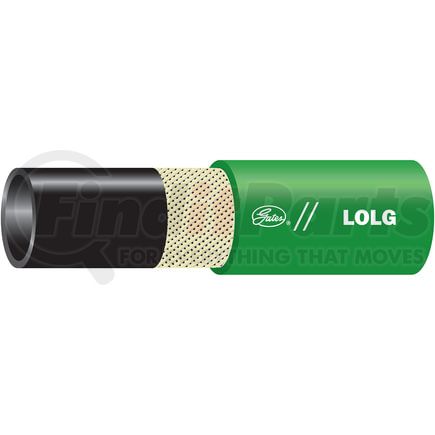

LOL Plus Lock-On Hose

For use with Field Attachable LOC Couplings [G36 Series], GLX Couplings [G44 Series] and G37 single bead and G38 barbed fittings with clamp
Available in 6 colors for easy color coding; black Polychloroprene (LOLA), blue (LOLB), green (LOLG), red (LOLR), yellow (LOLY) and gray (LOLC)
Black cover only meets Flame Resistance Acceptance Designation MSHA 2G
Temperatures Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: to +160 Deg. F (+71 Deg. C)

GATES 85973 Specifications

Product Type	LOL Plus Lock-On Hose
Industrial Description	6LOLGX25FT
Type	Hydraulic Hose
Hose Pressure Description	Low Pressure
Maximum Working Pressure	300 PS
Burst Pressure	1200 PS
Temperature Rating	-40 Deg. F to +212 Deg. F, to +160 Deg. F (Air)
Length	25 FT
Dash Size	6
Inside Diameter	.375 IN
Outside Diameter	.63 IN
Bend Radius	3 IN
Vacuum Rating	28 INHG
Tube Description	Black, Highly Heat & Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	One Fiber Braid
Cover Material	Synthetic Rubber - Modified Nitrile - Type C2
Cover Type	Type C2 - Oil & Abrasion Resistant
Cover Color	Green
Coupling Recommendation	Field Attachable LOC, GLP, GLX
SAE Standard	N/A
EN Standard	N/A
ISO Standard	N/A

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4009310000
UPC	00072053549225
VMRS Code	059032029
UNSPSC	40142020

Brand	Part Number
Weatherhead	H20106GN, H20106GY
NAPA	85973
