Gates 85730 - C14CT PTFE Hose - SAE100R14 Type B - Conductive
$49975
Package Price for 25 Units
@ $19.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

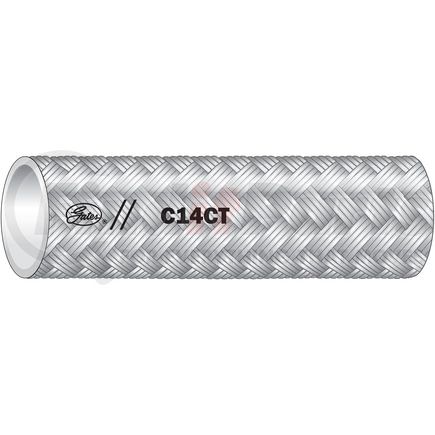

C14CT PTFE Hose - SAE100R14 Type B - Conductive
Features & Benefits
- For use with Brass and Stainless Steel C14 Couplings [G40 Series]
- Temperature Range: Dynamic: -65 Deg. F to +400 Deg. F (-54 Deg. C to +204 Deg. C); Static: -65 Deg. F to +450 Deg. F (-54 Deg. C to +232 Deg. C)
- NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube
- NOTE: But you must review the potential for electrostatic discharge for every application and be aware that static electricity can be hazardous
- NOTE: In those cases where electrostatic discharge can occur, conductive PTFE hose with a conductive tube (Gates C14CT) is recommended
Product Attributes
| Product Type | C14CT PTFE Hose - SAE100R14 Type B - Conductive |
| Industrial Description | 6C14CTX25FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1500 PS |
| Burst Pressure | 6000 PS |
| Temperature Rating | -65 Deg. F to +400 Deg. F (Dynamic); -65 Deg. F to +450 Deg. F (Static) |
| Length | 25 FT |
| 9941 | 6 |
| Inside Diameter | .3125 IN |
| Outside Diameter | .45 IN |
| 2053 | 1500 PS |
| 9879 | 4 IN |
| 9835 | 28 INHG |
| Tube Description | Conductive Black/White Smooth Bore Polytetrafluoroethylene |
| Hose Material | PTFE - Type B |
| Reinforcement Material | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Cover Color | Silver |
| Cover Material | 300 Series Stainless Steel Wire |
| Cover Type | Braided |
| 9856 | C14 Couplings |
| 9453 | 100R14 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053222982 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
