Gates 85697 - C5E High-Temp Flexline Hose
$57799
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

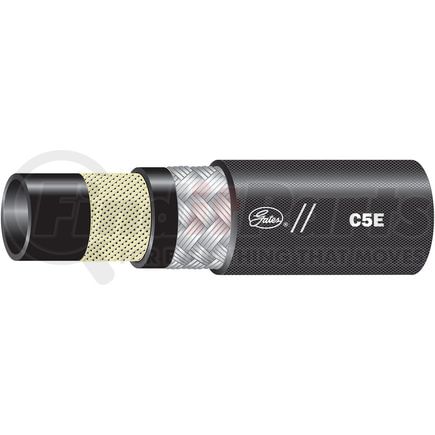

C5E High-Temp Flexline Hose
Features & Benefits
- For use with C5E Field Attachable Couplings [G35 Series]
- DOT FMVSS 106 Type A1, SAE J1405 and SAE J1402 Type A1 (-4 to -12)
- Temperature Range: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Air Maximum Only: +250 Deg. F (+121 Deg. C)
Product Attributes
| Product Type | C5E High-Temp Flexline Hose |
| Industrial Description | 20C5EX25FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 300 PS |
| Burst Pressure | 1200 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C). Air +250 Deg. F (+121 Deg. C) Maximum Only |
| Length | 25 FT |
| 9941 | 20 |
| Inside Diameter | 1.125 IN |
| Outside Diameter | 1.49 IN |
| 9879 | 4.5 IN |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Heat Resistant |
| Cover Color | Black |
| 9856 | C5E Field Attachable |
| 9453 | N/A |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053310993 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
