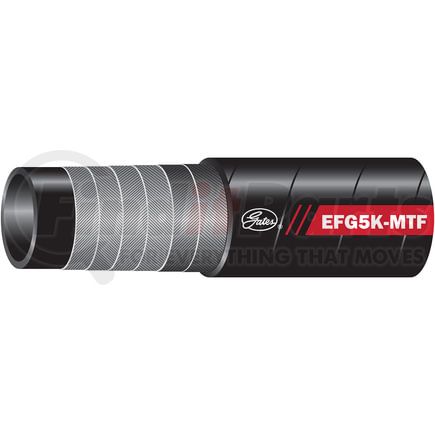

Name: Gates 85464 EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
SKU: 85464
Price: 3658.49 USD
Availability: InStock

GATES 85464 Part Description

EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover

For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

GATES 85464 Specifications

Product Type	EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
Industrial Description	20EFG5K-MTFX25FT
Type	Hydraulic Hose
Hose Pressure Description	Extremely High Pressure Hose
Maximum Working Pressure	5000 PS
Burst Pressure	20000 PS
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Length	25 FT
Dash Size	20
Inside Diameter	1.25 IN
Outside Diameter	1.97 IN
Bend Radius	8.2 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Six Alternating Layers of Spiraled, High-Tensile Steel
Cover Material	Synthetic Rubber - Neoprene - Type A - Color Coded Layline
Cover Type	Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover
Cover Color	Black
Coupling Recommendation	GlobalSpiral, Stainless Steel S
SAE Standard	100R13
EN Standard	856 R13, 857 4SH
ISO Standard	18753 Grade D, 3862 Type R13

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009410000
UPC	00072053505962
VMRS Code	059032029
UNSPSC	40142020

Brand	Part Number
Parker	782TC-16-BX, 782TC-20-BX
NAPA	85464
