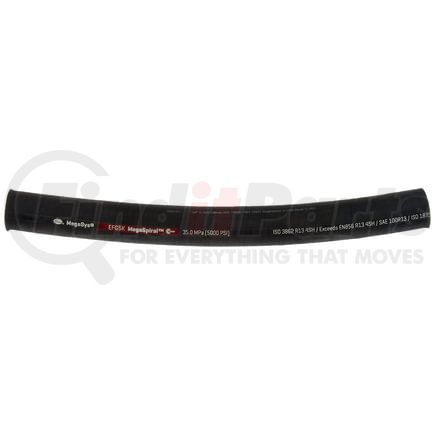

Name: Gates 85457 EFG5K Spiral Wire Hose - SAE 100R13
SKU: 85457
Price: 1135.99 USD
Availability: InStock

GATES 85457 Part Description

EFG5K Spiral Wire Hose - SAE 100R13

For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

GATES 85457 Specifications

Product Type	EFG5K Spiral Wire Hose - SAE 100R13
Industrial Description	16EFG5KX25FT
Type	Hydraulic Hose
Hose Pressure Description	Extremely High Pressure
Maximum Working Pressure	5000 PS
Burst Pressure	20000 PS
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Length	25 FT
Dash Size	16
Inside Diameter	1 IN
Outside Diameter	1.53 IN
Bend Radius	6 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Four Alternating Layers of Spiraled, High-Tensile Steel
Cover Material	Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline
Cover Type	Type A - Flame & Oil Resistant
Cover Color	Black
Coupling Recommendation	GlobalSpiral, Stainless Steel S
SAE Standard	100R13
EN Standard	856 R13, 856 4SH
ISO Standard	18752 Grade D, 3862 Type R13

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009410000
UPC	00072053506075
VMRS Code	059032029
UNSPSC	40142020
