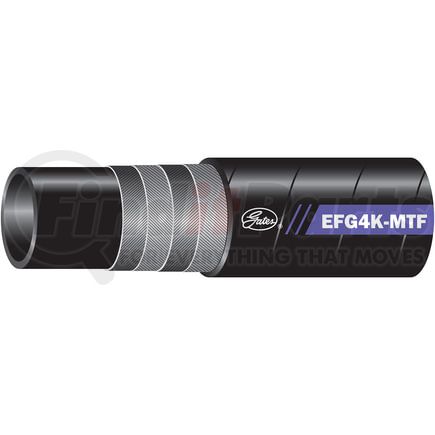

Gates 70946 - EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
Product Type | EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover |
Industrial Description | 8EFG4K-MTFXCTN |
Type | Hydraulic Hose |
Hose Pressure Description | Very High Pressure |
Maximum Working Pressure | 4000 PS |
Burst Pressure | 16000 PS |
Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
Length | 100 FT |
9941 | 8 |
Inside Diameter | .5 IN |
Outside Diameter | .94 IN |
9879 | 3.5 IN |
Tube Description | Black, Synthetic Rubber |
Hose Material | Nitrile - Type C |
Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
Cover Color | Black |
9856 | GlobalSpiral, Stainless Steel S |
9453 | 100R12 |
9954 | 857 R12 |
9953 | 18753 Grade D, 3862 Type R12 |
Additional Information
Harmonized Tariff Code (Schedule B) | 4009410000 |
Country of Origin (Primary) | US |
UPC | 00072053978865 |
VMRS Code | 059032029 |
UNSPSC | 40142020 |
