GATES part description
Product Description

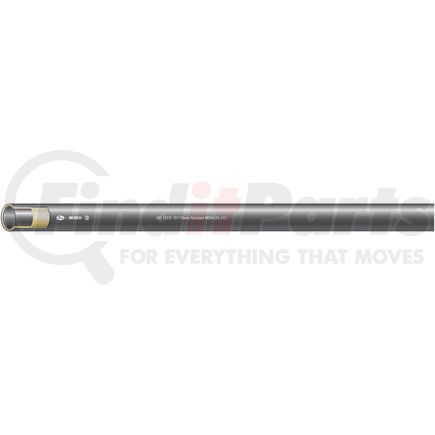

Global M3KH Mega3000 Hose - High-Temp - SAE 100R17
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series] and MegaCrimp Couplings [G25 Series]
- Rated at 3250 PSI working pressure
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Product Type | Global M3KH Mega3000 Hose - High-Temp - SAE 100R17 |
| Industrial Description | 6M3KHXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3250 PS |
| Burst Pressure | 13000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 330 FT |
| 9941 | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .65 IN |
| 9879 | 2.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp |
| 9453 | 100R17 |
| 9954 | 857 1SC |
| 9953 | 18752 Grade C, 11237 R17 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00072053882285 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
