(888) 312-8812 Login SignupGATES 70830 Global M4K Mega4000 Hose - SAE 100R19 - MegaTuff Cover
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70830 Part Description
Manufacturer
Product Description

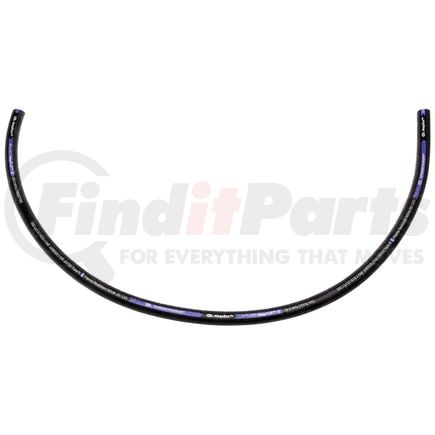

Global M4K Mega4000 Hose - SAE 100R19 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series] or Stainless Steel Braid Couplings [G17 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70830 Specifications
Product Attributes
| Product Type | Global M4K Mega4000 Hose - SAE 100R19 - MegaTuff Cover |
| Industrial Description | 4M4K-MTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 4000 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 350 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .55 IN |
| Bend Radius | 1.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp, Stainless Steel B |
| SAE Standard | 100R19 |
| EN Standard | N/A |
| ISO Standard | 18752 Grade B, 11237 R19 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053449556 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70830 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 351ST-4, 351ST-4-RL |
| Goodyear | XCP4-04X250 |
| NAPA | 70830 |
