GATES part description
Product Description

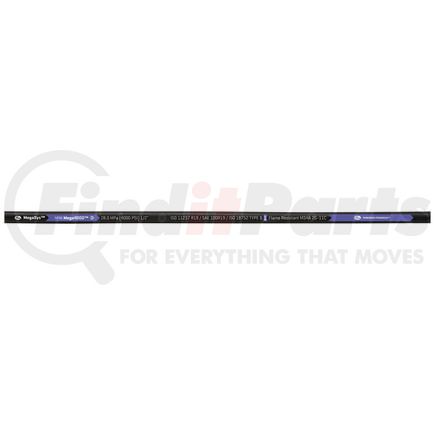

Global M4K Mega4000 Hose - SAE 100R19
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series] or Stainless Steel Braid Couplings [G17 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| 9453 | 100R19 |
| 9954 | N/A |
| 9953 | 18752 Grade B, 11237 R19 |
| Product Type | Global M4K Mega4000 Hose - SAE 100R19 |
| Industrial Description | 8M4KXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 4000 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| 9941 | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .82 IN |
| 9879 | 2.8 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp, Stainless Steel B |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053282351 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
