(888) 312-8812 Login SignupGATES 70602 Global G1 1-Wire Braid Hose - SAE 100R1 Type S
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70602 Part Description
Manufacturer
Product Description

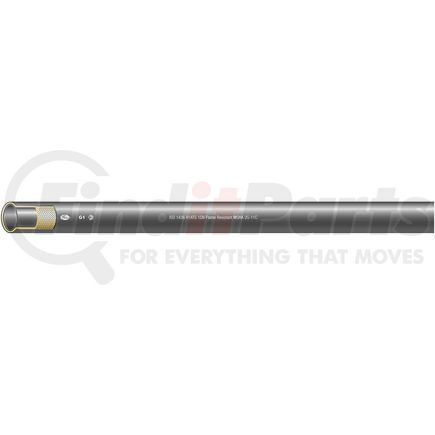

Global G1 1-Wire Braid Hose - SAE 100R1 Type S
Features & Benefits
- Use with Field Attachable Type T [G27 Series], GlobalSpiral [G20 Series], GlobalSpiral Plus [G22 Series], MegaCrimp [G25 Series], Power Crimp or Stainless Steel Braid Couplings [G17 Series]
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70602 Specifications
Product Attributes
| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Industrial Description | 8G1XREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2325 PS |
| Burst Pressure | 9300 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 330 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .8 IN |
| Bend Radius | 7 |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | Field Attachable T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R1 |
| EN Standard | 853 1SN |
| ISO Standard | 1436 1SN R1 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00072053210996 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70602 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 2681-8, FC211-08, FC211-08RL, GH663-8R250, GH663-8R500 |
| Parker | 421-8, AX08 |
| Dayco | 012758, 12758 |
| Weatherhead | H10408250R, H10408500R, H19008250R, H19008500R |
| Goodyear | GR1SN-08X250RL, GR1SN08X250 |
| NAPA | 70602 |
