Gates 70394 - M2T™ MegaFlex™ Hydraulic Hose - 2-Wire, Braid, Nitrile, SAE 100R16
$3,62780
Package Price for 220 Units
@ $16.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

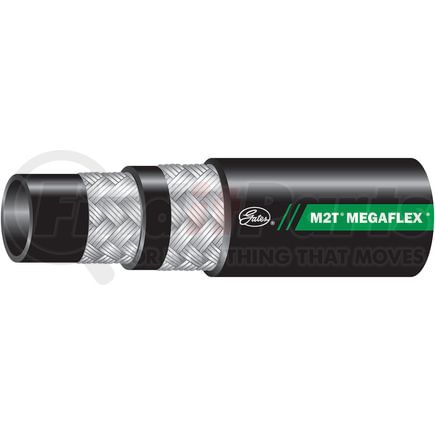

M2T™ MegaFlex™ Hydraulic Hose - 2-Wire, Braid, Nitrile, SAE 100R16
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | M2T™ MegaFlex™ 2-Wire Braid Hose - SAE 100R16 |
| Industrial Description | 12M2TXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3500 PS |
| Burst Pressure | 14000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| 9941 | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.11 IN |
| 9879 | 3.8 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp, Stainless Steel B |
| 9453 | 100R16 |
| 9954 | 857 2SC, 853 2SN |
| 9953 | 11237 2SC R16, 1436 2SN R2 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00072053318999 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
- Aeroquip FC310-12
- Aeroquip FC310-12RL
- Aeroquip GH781-12
- Parker 431-12
- Parker 431-12-BX
- Parker 431-12-RL
- Dayco 010262A
- Dayco 011462
- Dayco 011462A
- Dayco 11462
- Weatherhead H24512250R
- Weatherhead H28012250R
- Weatherhead H29012250R
- Goodyear GR16-12X250RL
- Goodyear GR16-12X50
- Goodyear GR16-12X50BX
- Goodyear GR16SC12X250
- Goodyear SR16SC-12X250
- NAPA 70394
