(888) 312-8812 Login SignupGATES 70290 Global G2L PolarFlex Hose - SAE 100R2 Type S
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70290 Part Description
Manufacturer
Product Description

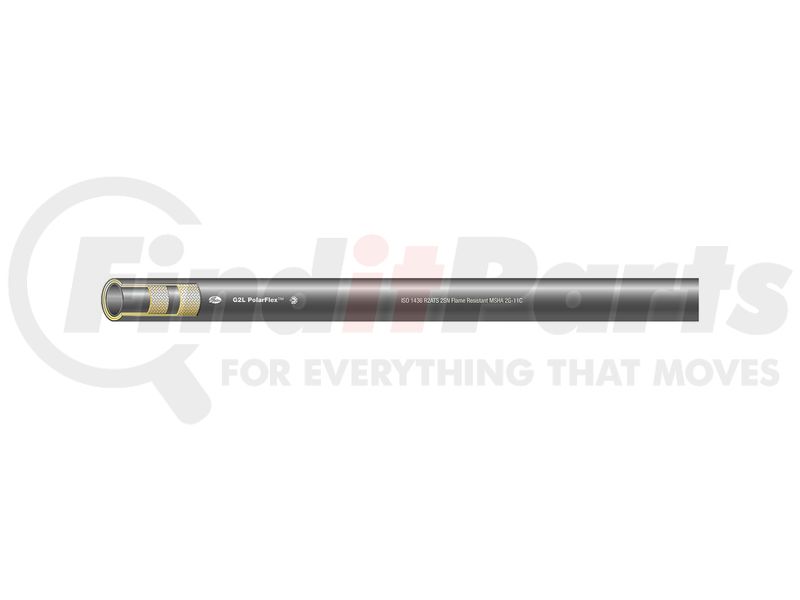

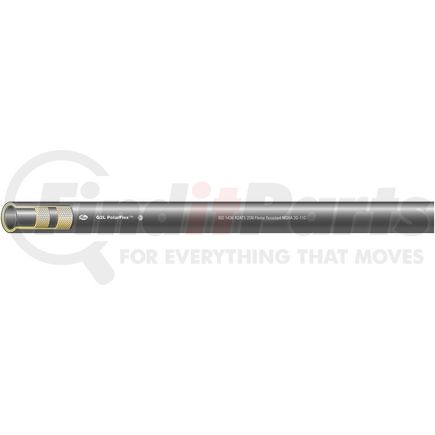

Global G2L PolarFlex Hose - SAE 100R2 Type S
Features & Benefits
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp Couplings [G25 Series]
- Tested to industry-standard 600,000 impulse cycles
- Unique low temperature tube for extended service life at extremely low temperatures
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C)
GATES 70290 Specifications
Product Attributes
| Product Type | Global G2L PolarFlex Hose - SAE 100R2 Type S |
| Industrial Description | 8G2LXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 4000 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C) |
| Length | 330 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .86 IN |
| Bend Radius | 7 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Thin Synthetic Rubber - Chloroprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSprial, MegaCrimp |
| SAE Standard | 100R2 |
| EN Standard | 853 2SN |
| ISO Standard | 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053470802 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70290 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | GH120-8, GH120-8R500 |
| Parker | 301LT-8-RL |
| Goodyear | LR2SN-08X250RL, LR2SN08X250 |
| NAPA | 70290 |
