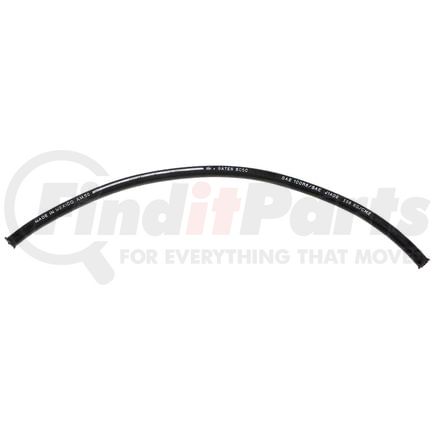

Gates 70096 - C5C Hydraulic Hose - SAE 100R5
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
C5C Hydraulic Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106-74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106–74 TypeAII and SAE J1402 Type AII for air brake applications (-4 to -12)
- Avoid continuous use at maximum temperature concurrent with maximum working pressures
- Temperature Range: Hydraulic Conditions: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); All-purpose Fleet Application (Hot Lube Oil Lines) -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C)
Product Attributes
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Industrial Description | 20C5CXCTN |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 625 PS |
| Burst Pressure | 2500 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (Hydraulic); -40 Deg. F to +300 Deg. F (Hot Oil Lines); +160 Deg. F (Air) |
| Length | 100 FT |
| 9941 | 20 |
| Inside Diameter | 1.125 IN |
| Outside Diameter | 1.5 IN |
| 9879 | 9 IN |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| 9856 | C5 Field Attachable |
| 9453 | 100R5 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053226249 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
