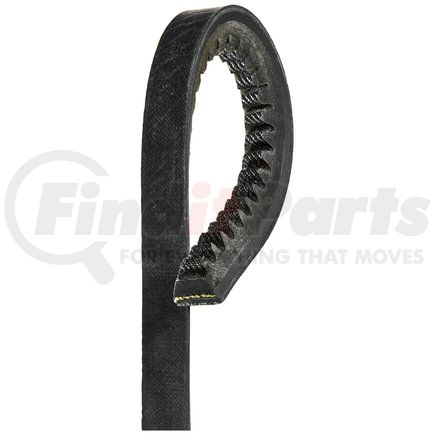

Name: Gates 3VX710 Super HC Narrow Section Molded Notch V-Belt
SKU: 3vx710
Price: 28.49 USD
Availability: InStock

GATES part description

Product Description

Super HC Narrow Section Molded Notch V-Belt

Application Summary

Case, J.I., 120, , Deck

Features & Benefits

Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts

Product Attributes

Type	Narrow Section Molded Notch V-Belt
Cross Section Designation	3VX
Strand Quantity	1
Top Width	.38 in
Outside Circumference	71 in
Construction	Notched
9837	Yes
Belt Material	Ethylene Elastomer (EE)
Cord Material	Polyester
Top Width	10 mm
Outside Circumference	1803 mm

Additional Information

Harmonized Tariff Code (Schedule B)	4010343000
Country of Origin (Primary)	US
UPC	00072053016154
VMRS Code	065005003
UNSPSC	26111801

Part Interchanges

GATES 3VX710 Cross Reference

We have 1 alternatives for the 3VX710 by GATES:

94120710
