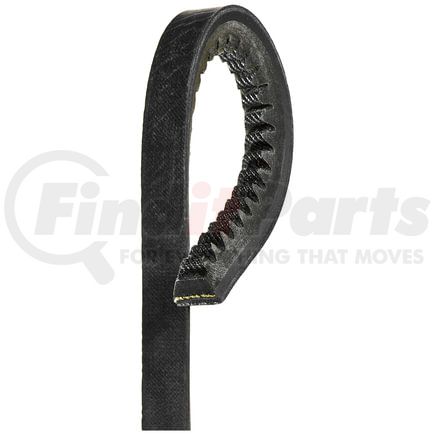

Gates 3VX265 - Super HC Narrow Section Molded Notch V-Belt
$1499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Super HC Narrow Section Molded Notch V-Belt
Application Summary
Sears Roebuck, 247.887000, , Auger
Features & Benefits
- Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
- More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
- Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
- Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
- Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
- Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
- NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts
Product Attributes
| Type | Narrow Section Molded Notch V-Belt |
| Cross Section Designation | 3VX |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 26.5 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 673 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| UPC | 00072053015980 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
- ACDelco 3VX265
- Dayco 3VX265
- CARQUEST 3VX265
- Browning Manufacturing 3VX265
- Clay Equip 09033800
- Continental Belt 1/3VX265
- MTD Products 754-04014
- MTD Products 954-04014
- Stens 265-245
- Tennant 41833
- Tennant 418331
- Wheel Horse 252286
- Goodyear 3VX265
- NAPA Belts/Hose 3VX265
- Grainger 2L378
- NAPA 3VX265
- NAPA 4265
- PIX A-3VX265
- <Unknown> 2925B06H87
- Metric 9XN670
- Metric SPZ670
- Oregon 15-604
Fits Vehicles
- Cub Cadet Volunteer WT (2018-2019)
- Cub Cadet Volunteer WT Cab (2016-2019)
- Cub Cadet Volunteer 4x4 EFI w/Cab (2009)
- Cub Cadet Volunteer 4x4 EFI (2008-2020)
