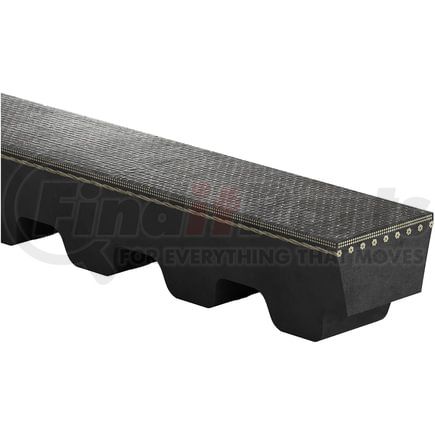

Gates 3VX250 - Super HC Narrow Section Molded Notch V-Belt
$1399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Super HC Narrow Section Molded Notch V-Belt
Application Summary
Lesco, 20, , Pump Drive
Features & Benefits
- Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
- More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
- Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
- Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
- Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
- Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
- NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts
Product Attributes
| Type | Narrow Section Molded Notch V-Belt |
| Cross Section Designation | 3VX |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 25 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 635 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053015973 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
- ACDelco 3VX250
- Dayco 3VX250
- CARQUEST 3VX250
- Sunnen Products MBB820U
- Browning Manufacturing 3VX250
- Case Tractor H435937
- Continental Belt 1/3VX250
- Food Machine 1715611
- Harnischfeger Ph Diesel 7Z277D252
- New Holland 253314
- Goodyear 3VX250
- NAPA Belts/Hose 3VX250
- Alliance Truck Parts GT3VX250
- Grainger 2L377
- Lesco 021811
- Mobile 4279
- NAPA 3VX250
- PIX A-3VX250
- Powermatic 6077169
- <Unknown> 4642C97H66
- Metric SPZ630
