GATES part description

Product Description

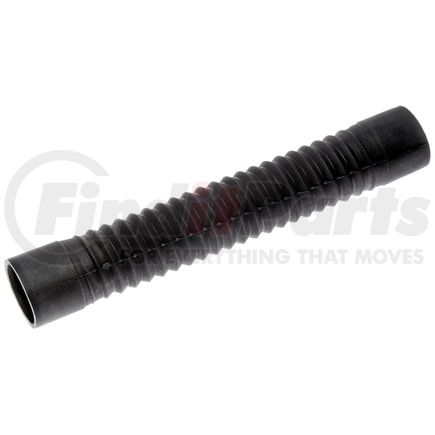

Green Stripe Heavy-Duty Vulco-Flex Coolant Hose

Application Summary

1994-1990 International/Navistar, 8100, Caterpillar 3176 Diesel, Upper

Features & Benefits

  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Built-in steel spiral wire allows for medium sized curves without kinking or collapsing
  • EPDM tube and Neoprene cover for extended service life
  • Polyester fabric-ply reinforcement vulcanizes into shape without unnecessary strain on connections
  • Resistant to heat, oil and ozone
  • Performs to SAE 20R5 Type EC Class D-2 specifications
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 20 IN
End 1 Inside Diameter 2 in
End 2 Inside Diameter 2.5 in
Material EPDM, Steel
9839 No
Centerline Length 508 MM
End 1 Inside Diameter 51 MM
End 2 Inside Diameter 64 MM

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4009410000
UPC 00072053064889
VMRS Code 042004061
UNSPSC 40142000

Part Interchanges

GATES 26518 Cross Reference

We have 1 alternatives for the 26518 by GATES:

Fits Vehicles

  • International 8300 (1990-1993)
  • International 8200 (1990-1993)
  • International 2574 (1991-1993)
  • International 8100 (1990-1994)
  • International 2674 (1990-1993)
