(888) 312-8812 Login SignupGATES 24964 Green Stripe Wire Inserted Straight Coolant Hose
Tap to view 2 more
$28499
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
GATES 24964 Part Description
Manufacturer
Product Description

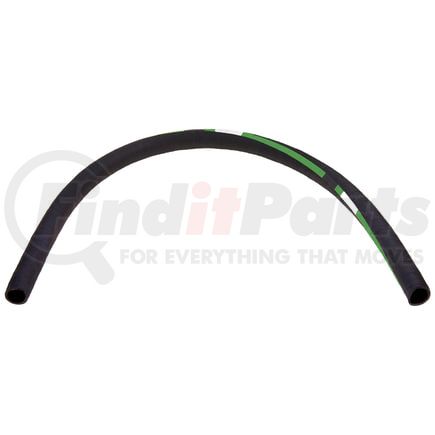

Green Stripe Wire Inserted Straight Coolant Hose
Features & Benefits
- Heavy-duty fabric reinforcement with helical carbon steel wire
- Engineered with compounds which resist electrochemical degradation
- Exceeds SAE 20R2 Type EC (Class D2 tube and cover) except in vacuum applications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Long spans must be supported every 3 feet
- Caution: Do not use for fuel or oil transfer applications
GATES 24964 Specifications
Product Attributes
| Centerline Length | 5 FT |
| End 1 Inside Diameter | 4 in |
| End 2 Inside Diameter | 4 in |
| Working Pressure | 30 PS |
| Vacuum Rating | 10 INHG |
| Bending Radius | 20 in |
| Construction | 1-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | 1.52 LM |
| Centerline Length | 60 IN |
| Centerline Length | 1524 MM |
| End 1 Inside Diameter | 102 MM |
| End 2 Inside Diameter | 102 MM |
| Bending Radius | 508 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | US |
| UPC | 00072053177596 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
GATES 24964 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 31218 |
| Dayco | 4H400, 75400, 75400GL, 4400, 74400, 75413 |
| Carquest | 24964 |
GATES 24964 Cross References
We have 2 alternatives for the 24964 by GATES:
