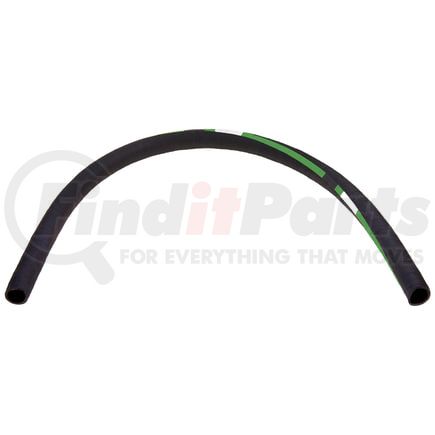

(888) 312-8812 Login SignupGATES 24924 Green Stripe Wire Inserted Straight Coolant Hose
Tap to view 2 more
$16249
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES 24924 Part Description
Manufacturer
Product Description
Green Stripe Wire Inserted Straight Coolant Hose
Application Summary
Gomaco, GT6000-66, Detroit Diesel 2-53 Diesel, Upper
Features & Benefits
- Heavy-duty fabric reinforcement with helical carbon steel wire
- Engineered with compounds which resist electrochemical degradation
- Exceeds SAE 20R2 Type EC (Class D2 tube and cover) except in vacuum applications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Long spans must be supported every 3 feet
- Caution: Do not use for fuel or oil transfer applications
GATES 24924 Specifications
Product Attributes
| Centerline Length | 5 FT |
| End 1 Inside Diameter | 1.5 in |
| End 2 Inside Diameter | 1.5 in |
| Working Pressure | 85 PS |
| Vacuum Rating | 20 INHG |
| Bending Radius | 3.5 in |
| Construction | 1-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | 1.52 LM |
| Centerline Length | 60 IN |
| Centerline Length | 1524 MM |
| End 1 Inside Diameter | 38 MM |
| End 2 Inside Diameter | 38 MM |
| Bending Radius | 89 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053177459 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
GATES 24924 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 31204 |
| Dayco | 75150, 75150GL, 4150, 74150 |
| Carquest | 24924 |
| Clarke Div | 6585817 |
| Goodyear | 58024 |
GATES 24924 Cross References
We have 2 alternatives for the 24924 by GATES:
