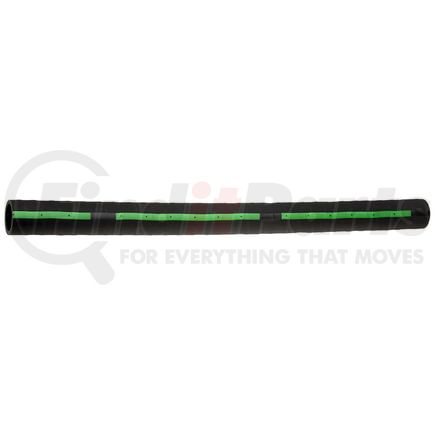

Gates 24448 - Green Stripe 4-Ply Straight Coolant Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Green Stripe 4-Ply Straight Coolant Hose
Application Summary
2009 Kenworth, T800, Cummins ISX Diesel, Lower - Eng. To Pipe
Features & Benefits
- Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
- Engineered with compounds to resist electrochemical degradation – the leading cause of hose failure
- Nitrile tube specially compounded to handle common coolants and additives
- Four-ply woven, heavy-duty fabric reinforcement
- Neoprene cover resists heat, abrasion and oil
- Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Temperature Range: –40 Deg. F to +212 Deg. F (–40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Caution: Do not use for gasoline or diesel transfer applications
Product Attributes
| 2035 | 3 FT |
| End 1 Inside Diameter | 3 in |
| End 2 Inside Diameter | 3 in |
| 2053 | 60 PS |
| Construction | 4-Ply |
| Material | EPDM |
| 9839 | No |
| 2035 | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 76 MM |
| End 2 Inside Diameter | 76 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053298215 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- Kenworth T800 (2009)
