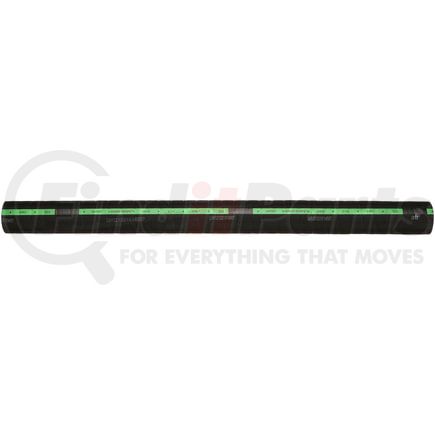

Gates 24436 - Green Stripe 4-Ply Straight Coolant Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Green Stripe 4-Ply Straight Coolant Hose
Application Summary
2016-08 International/Navistar, WorkStar 7300, International/Navistar MaxxForce DT Diesel, Upper - Pipe To Eng.
Features & Benefits
- Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
- Engineered with compounds to resist electrochemical degradation – the leading cause of hose failure
- Nitrile tube specially compounded to handle common coolants and additives
- Four-ply woven, heavy-duty fabric reinforcement
- Neoprene cover resists heat, abrasion and oil
- Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Temperature Range: –40 Deg. F to +212 Deg. F (–40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Caution: Do not use for gasoline or diesel transfer applications
Product Attributes
| 2053 | 90 PS |
| Construction | 4-Ply |
| Material | EPDM |
| 9839 | No |
| 2035 | 3 FT |
| End 1 Inside Diameter | 2.25 in |
| End 2 Inside Diameter | 2.25 in |
| 2035 | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 57 MM |
| End 2 Inside Diameter | 57 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053289565 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
- Carquest 24436
- Caterpillar 5P1260
- Ford F1HZ 8260 B
- Ford F1HZ 8260 C
- Ford F7HZ 8286 EA
- International Harvester (IHC) 503425C1
- International Harvester (IHC) 571598C1
- International Harvester (IHC) L57036
- International Harvester (IHC) L57236
- Mack 535471
- Goodyear 57036
- NAPA Belts/Hose 666
- Alliance Truck Parts GT/4175SC225
- Alliance Truck Parts GTF11017SB
- <Unknown> 10104712
GATES 24436 Cross Reference
We have 2 alternatives for the 24436 by GATES:
Fits Vehicles
- International 7700 (2007)
- International WorkStar 7300 (2015-2016)
- International 7500 (2009, 2013, 2016-2018)
- International 7400 (2010, 2012-2013, 2016-2018)
- International 7300 (2008-2012, 2015-2016)
- Kenworth C500 (2012)
