(888) 312-8812 Login SignupGATES 24230 Green Stripe 2-Ply Straight Coolant Hose
Tap to view 1 more
SHIPS TODAY
$9249
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
GATES 24230 Part Description
Manufacturer
Product Description

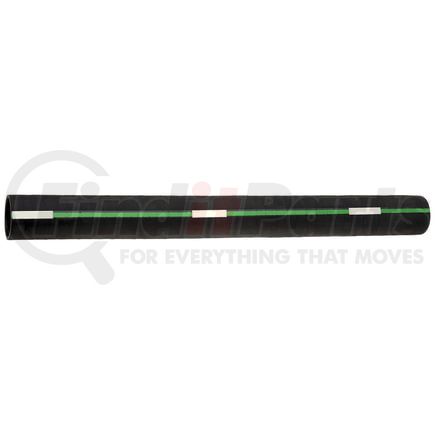

Green Stripe 2-Ply Straight Coolant Hose
Application Summary
Allis-Chalmers, HD6, Allis-Chalmers 4-Cyl. 344 Diesel, By Pass
Features & Benefits
- Cover marked in 1 in. increments to facilitate approximate cut lengths, allows "custom-fit" installations
- Cover marked in 1 in. increments to facilitate approximate cut lengths, allows “custom-fit" installations
- Engineered with compounds that resist electrochemical degradation
- Approved for marine applications
- Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: For a maintenance free connection, use PowerGrip SB clamps
- Caution: Do not use for fuel or oil transfer applications
GATES 24230 Specifications
Product Attributes
| Centerline Length | 3 FT |
| End 1 Inside Diameter | 1.875 in |
| End 2 Inside Diameter | 1.875 in |
| Working Pressure | 75 PS |
| Construction | 2-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 48 MM |
| End 2 Inside Diameter | 48 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053133028 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
GATES 24230 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 31059 |
| Dayco | 77188, 77188GL, 8113 |
| Carquest | 24230 |
| General Motors | 5199777 |
| Goodyear | 57030, 57230 |
| Magic Circle | 90126T |
| Purosil | GPC188 |
GATES 24230 Cross References
We have 1 alternatives for the 24230 by GATES:
