GATES part description

Product Description

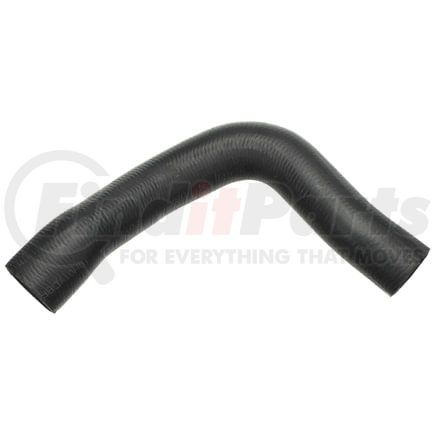

Premium Molded Coolant Hose

Application Summary

2002-1994 Dodge, Ram Series Pickup, 6-Cyl. 5.9 L Diesel, Lower

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 18.4 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.93 in
End 2 Inside Diameter 2.24 in
Contains Spring Yes
Material EPDM
9839 Yes
Centerline Length 467 MM
End 1 Inside Diameter 49 MM
End 2 Inside Diameter 57 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00072053079036
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 22082 Cross Reference

We have 1 alternatives for the 22082 by GATES:

Fits Vehicles

  • Dodge Ram 3500 (1994-2002)
  • Dodge Ram 2500 (1994-2002)
