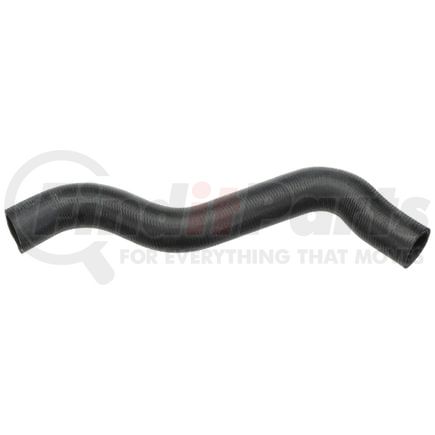

Gates 20994 - Premium Molded Coolant Hose
$2149
MSRP: $21.58
Save: $0.09
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Premium Molded Coolant Hose
Application Summary
1979-1977 Cadillac, Deville, V-8 425, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 18.5 IN |
| 9940 | No |
| Branch Quantity | 0 |
| 9845 | 0 |
| End 1 Inside Diameter | 1.5 in |
| End 2 Inside Diameter | 1.5 in |
| Contains Spring | No |
| Material | EPDM |
| 9839 | Yes |
| Centerline Length | 470 MM |
| End 1 Inside Diameter | 38 MM |
| End 2 Inside Diameter | 38 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053054385 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
- Mopar BH-1834
- Motorcraft KM-1066
- Mighty 151
- ACDelco 24069L
- Dayco 70861
- Dayco D70861
- Firestone 51311515
- Carquest 20994
- Atlas (Canada) MH-992
- General Motors 1609863
- General Motors 1609912
- General Motors 1617145
- General Motors 1619910
- Western Auto 77-8817-7
- Sears 23166
- Ultralast C0994
- Goodyear 151
- Goodyear 60992
- NAPA Belts/Hose 7729
- Atlas MC79
- Durkee-Atwood MR192
- Pro-1 P20994
- Continental Belt 60992
- Duralast D70861
Fits Vehicles
- Cadillac Fleetwood (1977-1984)
- Cadillac DeVille (1977-1981)
- Cadillac Commercial Chassis (1977-1984)
