GATES part description

Product Description

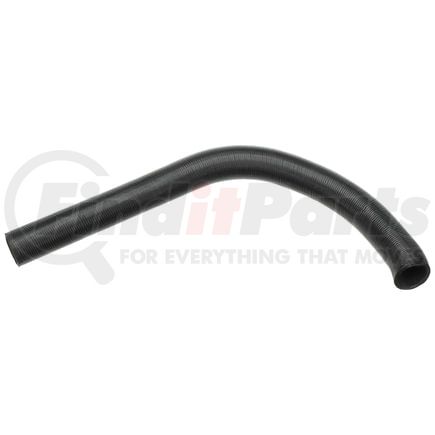

Premium Molded Coolant Hose

Application Summary

1998-1995 Ford, Explorer, V-6 4.0 L, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 26.6 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.5 in
End 2 Inside Diameter 1.5 in
Contains Spring No
Material EPDM
9839 Yes
Centerline Length 676 MM
End 1 Inside Diameter 38 MM
End 2 Inside Diameter 38 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00072053053326
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 20823 Cross Reference

We have 1 alternatives for the 20823 by GATES:

Fits Vehicles

  • Pontiac Ventura (1972-1974)
  • Mazda B4000 (1995-1997)
  • Pontiac GTO (1973)
  • Pontiac Firebird (1977)
  • Pontiac Parisienne (1973-1974, 1976)
  • Pontiac Laurentian (1973-1974, 1976)
  • Toyota Land Cruiser (1981)
  • Ford Ranger (1995-1997)
  • Ford Explorer (1995-1998)
  • Pontiac LeMans (1973-1974, 1976-1977, 1979)
  • Pontiac Grandville (1973-1975)
  • Pontiac Grand Safari (1973-1976)
  • Pontiac Grand Prix (1978-1979)
  • Pontiac Grand LeMans (1975-1977)
  • Pontiac Grand Am (1973-1975, 1978-1979)
  • Pontiac Catalina (1973-1976)
  • Pontiac Bonneville (1973-1976)
  • Buick Regal (1979)
  • Buick Century (1979)
