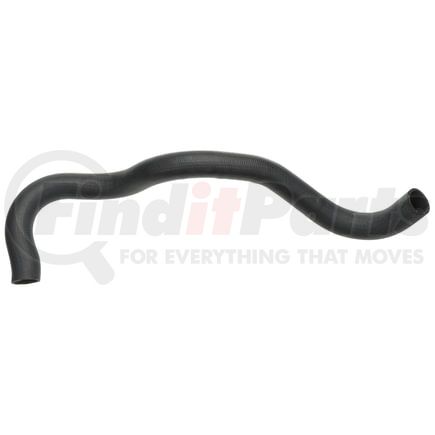

Gates 20683 - Premium Molded Coolant Hose
$3049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Premium Molded Coolant Hose
Application Summary
1976-1970 Cadillac, Eldorado, V-8 500, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 37.5 IN |
| 9940 | No |
| Branch Quantity | 0 |
| 9845 | 0 |
| End 1 Inside Diameter | 1.5 in |
| End 2 Inside Diameter | 1.5 in |
| Contains Spring | No |
| Material | EPDM |
| 9839 | Yes |
| Centerline Length | 953 MM |
| End 1 Inside Diameter | 38 MM |
| End 2 Inside Diameter | 38 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053052381 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
- Canadian Tire 14-1803-2
- Mopar BH-1124
- Mopar BH-1694
- Motorcraft KM-465
- Motorcraft KM-890
- Mighty 006
- Mighty 033
- Uniroyal MC21
- ACDelco 26013X
- Dayco 70621
- Dayco E70621
- Firestone 51316797
- Carquest 20683
- Atlas (Canada) MH-3683
- Conoco CH75
- General Motors 1249057
- General Motors 1252710
- General Motors 1489534
- General Motors 1489545
- General Motors 1492694
- General Motors 1492695
- General Motors 1494142
- General Motors 1494291
- General Motors 1605708
- General Motors 1606792
- General Motors 1608333
- General Motors 1608503
- General Motors 546763
- Western Auto 77-8407-7
- Western Auto 77-8638-7
- Montgomery Ward 363683
- Montgomery Ward 3683
- Petro-Canada 740 120
- Sears 23113
- Sears 3683
- Sears 67966
- Sunoco MC29
- Texaco RH10
- Ultralast C0683
- Unocal 76 529
- Goodyear 006
- Goodyear 60714
- Goodyear 60906
- NAPA Belts/Hose 7457
- Atlas MC29
- Autopar RH89
- Durkee-Atwood MR855
- Durkee-Atwood MR117
- Durkee-Atwood MR159
- Pro-1 P20683
- Service King 2027
- <Unknown> 1605703
- Continental Belt 60714
- Continental Belt E90409
- Duralast E90409
Fits Vehicles
- Pontiac Ventura (1977)
- Pontiac Grand LeMans (1977)
- Cadillac Calais (1968-1972, 1975-1976)
- Pontiac Phoenix (1977-1979)
- Pontiac LeMans (1977)
- Pontiac Catalina (1977-1978)
- Oldsmobile Omega (1977-1979)
- Oldsmobile Cutlass Supreme (1977)
- Oldsmobile Delta 88 (1977-1978)
- Oldsmobile Cutlass (1977)
- Cadillac Fleetwood (1968-1972, 1975-1976)
- Cadillac Eldorado (1968-1976)
- Cadillac DeVille (1968-1976)
- Cadillac Commercial Chassis (1968-1972, 1975-1976)
- Buick Skylark (1975-1979)
- Buick Regal (1975-1977)
- Buick LeSabre (1976-1978)
- Buick Century (1975-1977)
