GATES part description

Product Description

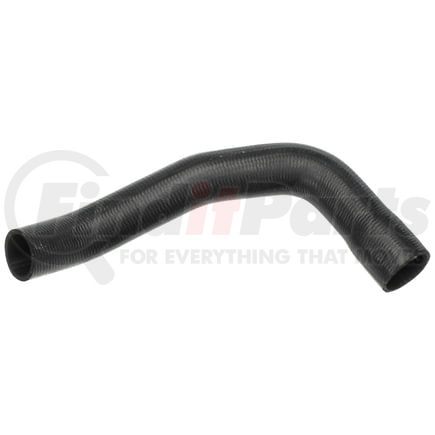

Premium Molded Coolant Hose

Application Summary

1968 Ford, Galaxie, V-8 390, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 16 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.5 in
End 2 Inside Diameter 1.75 in
Contains Spring No
Material EPDM
9839 Yes
Centerline Length 406 MM
End 1 Inside Diameter 38 MM
End 2 Inside Diameter 44 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00072053052282
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 20660 Cross Reference

We have 2 alternatives for the 20660 by GATES:

Fits Vehicles

  • GMC PM150 (1958-1959)
  • GMC PM250 (1958-1959)
  • GMC 150 (1958-1959)
  • GMC PM251 (1958-1959)
  • GMC PM152 (1958-1959)
  • GMC PM253 (1958)
  • GMC PM153 (1959)
  • GMC PM151 (1958-1959)
  • Mercury Medalist (1958)
  • Mercury Country Cruiser (1960)
  • Mercury Marquis (1967-1968)
  • Mercury Marauder (1967-1968)
  • Mercury Brougham (1967)
  • GMC 100 (1958-1959)
  • GMC 250 (1958-1959)
  • GMC PM252 (1958)
  • Mercury Park Lane (1967-1968)
  • Mercury Monterey (1959-1960, 1967-1968)
  • Mercury Montclair (1967-1968)
  • Mercury Commuter (1959-1960, 1967-1968)
  • Mercury Colony Park (1967-1968)
  • Ford Thunderbird (1966-1968)
  • Ford Ranch Wagon (1968)
  • Ford Custom (1968)
  • Ford LTD (1968)
  • Ford Galaxie 500 (1968)
  • Ford Custom 500 (1968)
  • Ford Country Squire (1968)
  • Ford Country Sedan (1968)
