GATES part description

Product Description

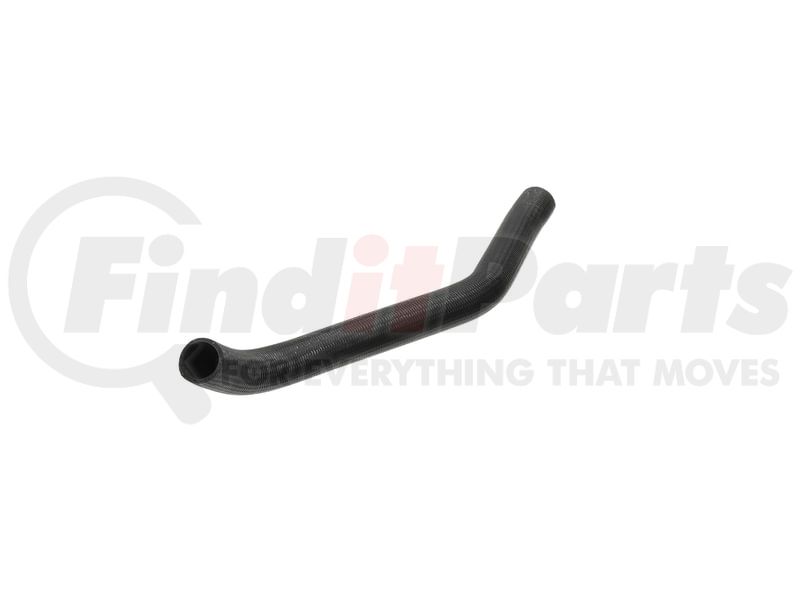

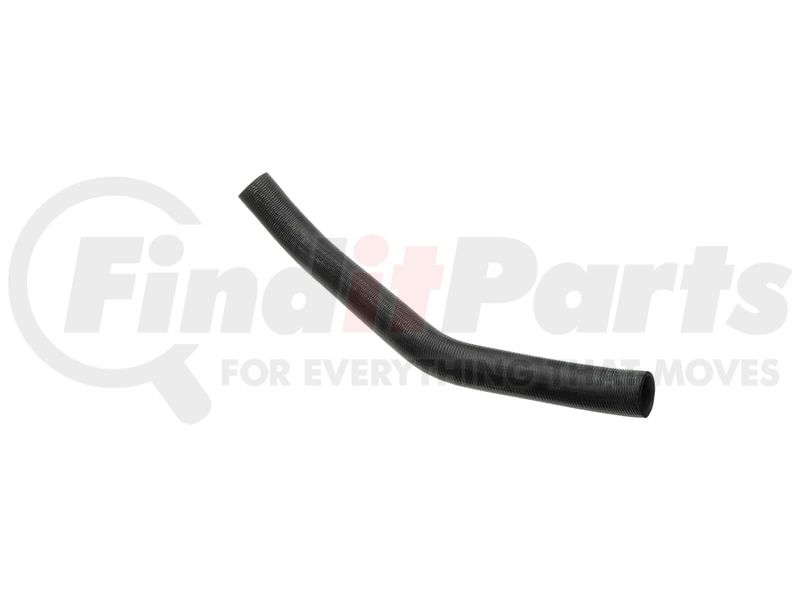

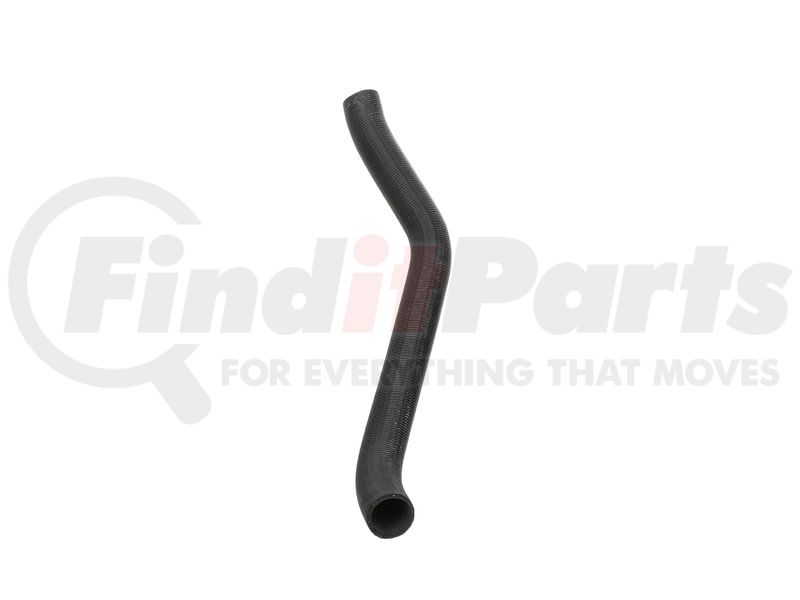

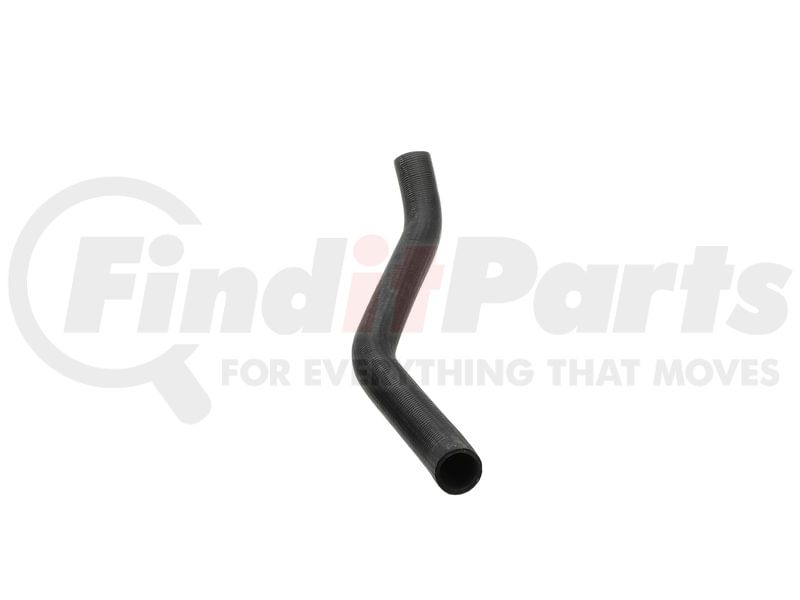

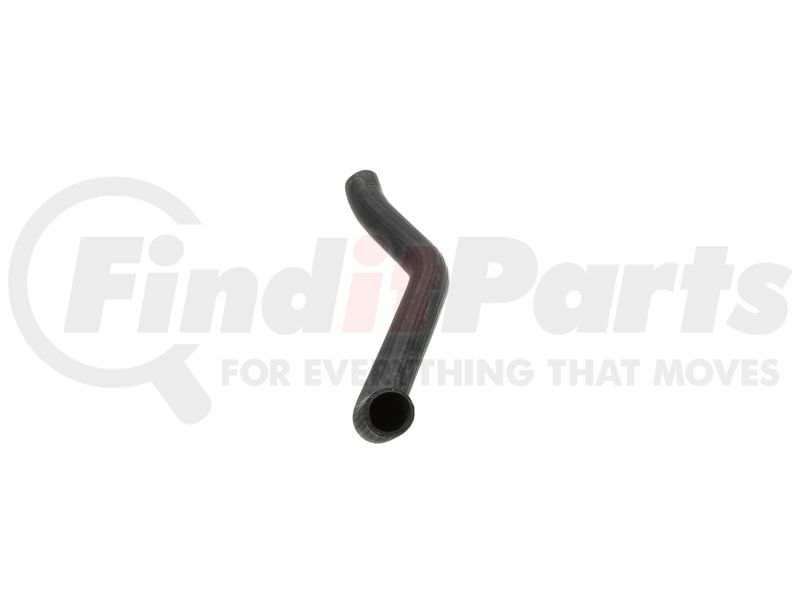

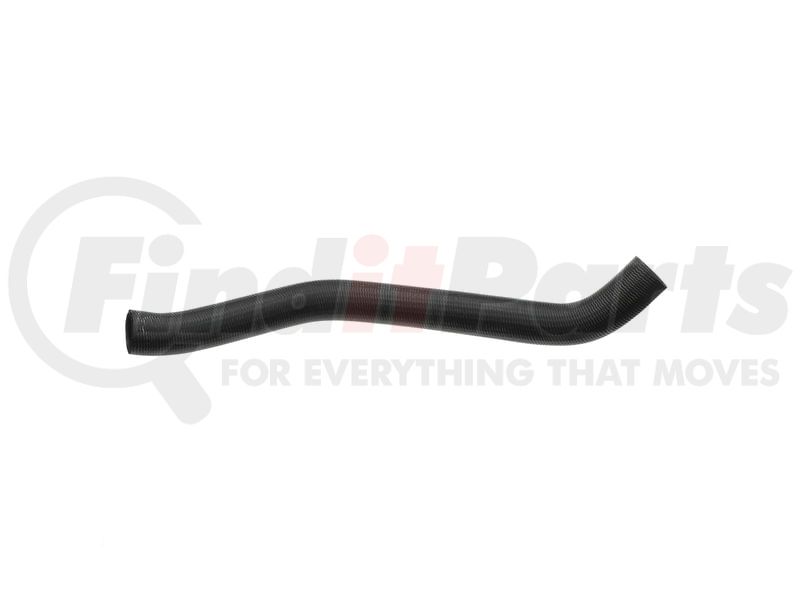

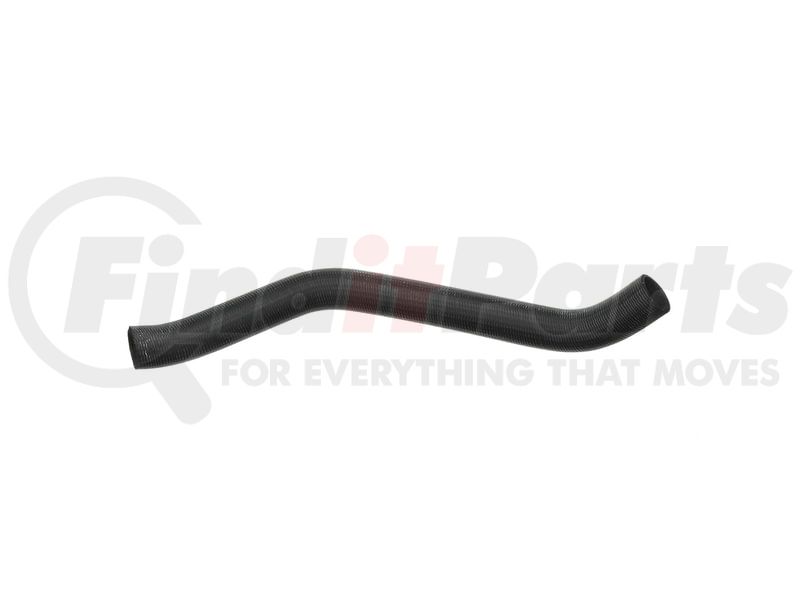

Premium Molded Coolant Hose

Application Summary

1974-1969 Chevrolet, C & K Series Pickup, V-8 350, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 24.4 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.5 in
End 2 Inside Diameter 1.5 in
Contains Spring No
Material EPDM
9839 Yes
Centerline Length 620 MM
End 1 Inside Diameter 38 MM
End 2 Inside Diameter 38 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00072053052022
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 20607 Cross Reference

We have 1 alternatives for the 20607 by GATES:

Fits Vehicles

  • GMC P15/P1500 Van (1973)
  • GMC P25/P2500 Van (1973-1974)
  • Chevrolet C60 (1967-1972)
  • Chevrolet C50 (1967-1972)
  • GMC Sprint (1971-1972)
  • GMC P35/P3500 Van (1973-1974)
  • GMC K35/K3500 Pickup (1968-1974)
  • GMC K25/K2500 Suburban (1968-1970, 1973-1974)
  • GMC K25/K2500 Pickup (1968-1974)
  • GMC K15/K1500 Suburban (1968-1970, 1973-1974)
  • GMC K15/K1500 Pickup (1968-1974)
  • GMC Jimmy (1970, 1973-1974)
  • GMC G35/G3500 Van (1971)
  • GMC G25/G2500 Van (1971)
  • GMC G15/G1500 Van (1971)
  • GMC C35/C3500 Pickup (1968-1970, 1973-1974)
  • GMC C25/C2500 Suburban (1968-1970, 1973-1974)
  • GMC C25/C2500 Pickup (1968-1970, 1973-1974)
  • GMC C15/C1500 Suburban (1968-1970, 1973-1974)
  • GMC C15/C1500 Pickup (1968-1970, 1973-1974)
  • Pontiac Phoenix (1979)
  • Pontiac Beaumont (1968-1969)
  • Chevrolet Townsman (1971-1972)
  • Chevrolet P30 Van (1973-1974)
  • Chevrolet P20 Van (1973-1974)
  • Chevrolet P10 Van (1973)
  • Chevrolet Kingswood (1971-1972)
  • Chevrolet K30 Pickup (1968-1974)
  • Chevrolet K20 Suburban (1968-1970, 1973-1974)
  • Chevrolet K20 Pickup (1968-1974)
  • Chevrolet K10 Suburban (1968-1970, 1973-1974)
  • Chevrolet G30 Van (1971)
  • Chevrolet K10 Pickup (1968-1974)
  • Chevrolet Impala (1971-1972)
  • Chevrolet G20 Van (1971)
  • Chevrolet G10 Van (1971)
  • Chevrolet El Camino (1968-1972)
  • Chevrolet Chevelle (1968-1972)
  • Chevrolet Caprice (1971-1972)
  • Chevrolet C30 Pickup (1968-1970, 1973-1974)
  • Chevrolet C20 Suburban (1968-1970, 1973-1974)
  • Chevrolet C20 Pickup (1968-1970, 1973-1974)
  • Chevrolet C10 Suburban (1968-1970, 1973-1974)
  • Chevrolet C10 Pickup (1968-1970, 1973-1974)
  • Chevrolet Brookwood (1971-1972)
  • Chevrolet Blazer (1969-1970, 1973-1974)
  • Chevrolet Biscayne (1971-1972)
  • Chevrolet Bel Air (1971-1972)
  • Chevrolet Nova (1969-1970, 1979)
  • Chevrolet Camaro (1967-1968, 1976-1979)
