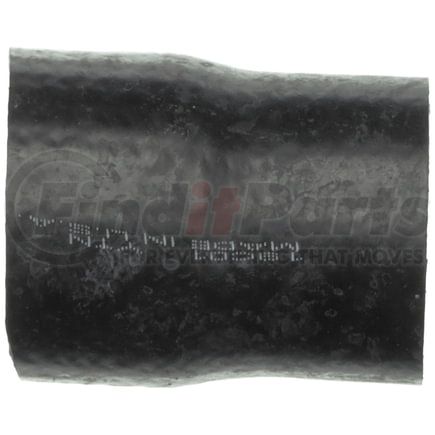

Gates 20532 - Premium Molded Coolant Hose
$1849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Premium Molded Coolant Hose
Application Summary
1988-1978 GMC, Brigadier, Caterpillar 3208 Diesel, Lower - Eng. To Pipe
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 3 IN |
| 9940 | No |
| Branch Quantity | 0 |
| 9845 | 0 |
| End 1 Inside Diameter | 2 in |
| End 2 Inside Diameter | 2.25 in |
| Contains Spring | No |
| Material | EPDM |
| 9839 | Yes |
| Centerline Length | 76 MM |
| End 1 Inside Diameter | 51 MM |
| End 2 Inside Diameter | 57 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053051575 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
- Mopar BH-1106
- Motorcraft KM-192
- Motorcraft KM-2908
- Motorcraft KM-57
- White 103091A
- ACDelco 20033S
- Dayco 605
- Dayco 70605
- Dayco B70605
- BF Goodrich MH376
- CARQUEST 20532
- Allis Chalmers 236252
- Case Tractor D53107
- Clark Equipment 1753139
- Food Machine 58A0988
- Galion D141532
- General Motors 2024500
- General Motors 2404516
- Ford C1TT 8A191 A
- Ford C1TZ 8286 J
- Ford D0HA 8260 AK
- Ford D0HZ 8260 C
- Ford D2HA 8260 AMA
- Ford F1HT 8260 ACA
- Ford F1HZ 8260 M
- Ford F1HZ 8260 N
- Ford F2HT 8260 JA
- Ford F2HT 8260 KA
- Ford F2HZ 8260 N
- International Harvester (IHC) 562425C1
- International Harvester (IHC) 897558R1
- John Deere 8540101011
- John Deere H86267
- John Deere R38249
- John Deere T31179
- Onan 5031074
- Goodyear 60695
- NAPA Belts/Hose 7418
- Alliance Truck Parts GTF21022SB
- Durkee-Atwood MR602
- Durkee-Atwood MR670
- Durkee-Atwood MR836
- Lefebure 7922593
- <Unknown> A59563
- <Unknown> 259563
- Continental Belt 60695
GATES 20532 Cross Reference
We have 2 alternatives for the 20532 by GATES:
Fits Vehicles
- Kenworth 13-210 (1988-1989)
- Kenworth 22-210 (1989)
- Ford LTL9000 (1993-1994)
- Ford LLS9000 (1994, 1996)
- GMC Brigadier (1981-1988)
- Ford LT9000 (1993)
- Ford LTS9000 (1993)
- Ford LLA9000 (1992-1993)
- Ford LA9000 (1995)
- White/GMC J8C0 (1988-1989)
- Ford LL9000 (1995-1996)
- Ford LTLS9000 (1992-1994)
- Ford LTLA9000 (1992-1993)
