GATES part description

Product Description

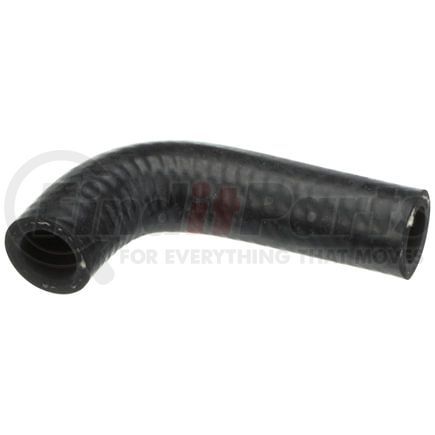

Premium Molded Coolant Hose

Application Summary

1985 Toyota, Pickup, 4-Cyl. 2.4 L, By Pass

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 3.9 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter .53 in
End 2 Inside Diameter .53 in
Contains Spring No
Material EPDM
9839 Yes
Centerline Length 99 MM
End 1 Inside Diameter 13 MM
End 2 Inside Diameter 13 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00072053050752
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 20191 Cross Reference

We have 1 alternatives for the 20191 by GATES:

Fits Vehicles

  • Jeep Willys (1950-1957)
  • Jeep FA-134 (1958-1960)
  • Jeep F4-134 (1957-1962)
  • Jeep F-134 (1963-1965)
  • Jeep 475 (1956)
  • Jeep FJ3A (1961-1964)
  • Jeep Utility (1961-1962)
  • Jeep F4 (1957-1960)
  • Jeep Commando (1967)
  • Jeep FJ3 (1964)
  • Jeep CJ5A (1966-1968)
  • Jeep CJ6A (1966-1968)
  • Jeep Universal (1961-1967)
  • Jeep Jeepster (1967-1971)
  • Jeep FC170 (1957-1961, 1964-1966)
  • Jeep FC150 (1957-1966)
  • Jeep DJ6 (1965-1968)
  • Jeep DJ5 (1965-1971)
  • Jeep DJ3 (1959-1966)
  • Jeep Dispatcher (1961-1967)
  • Jeep CJ6 (1959-1971)
  • Jeep CJ5 (1959-1971)
  • Jeep CJ3 (1959-1968)
  • Honda Accord (1982-1983)
  • AM General DJ5 (1969-1971)
  • Toyota Pickup (1985)
