(888) 312-8812 Login SignupGATES 20145 Radiator Coolant Hose - Premium Molded
$2899
Limited availability at this price!
In Stock
Get it by Friday, Jan 23
GATES 20145 Part Description
Manufacturer
Product Description

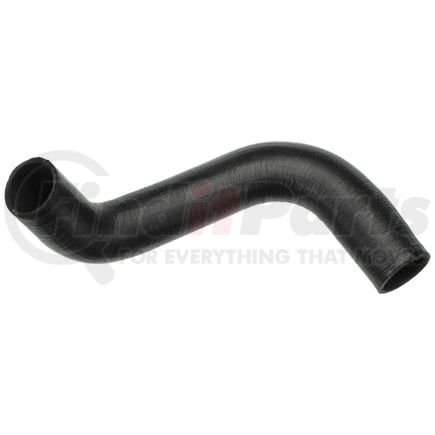

Premium Molded Coolant Hose
Application Summary
1991-1989 Dodge, Dakota, V-8 5.2 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20145 Specifications
Product Attributes
| Centerline Length | 16.4 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 1.75 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 417 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053050677 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20145 Cross References
| Brand | Part Number |
|---|---|
| 42610145 | |
| <Unknown> | 7620, 1303X02 |
| ACDelco | 22002M |
| Autopar | RH206 |
| BF Goodrich | MH91 |
| CARQUEST | 20145 |
| CONTINENTAL AG | 60113 |
| Chrysler | 1793093, 52004142 |
| Clark Equipment | 767299 |
| Continental Belt | C90378 |
| Dayco | 391, 70391, C70391, 70389, 70694, C70389, 70111, 70168, 70245, 70246 |
| Duralast | C70391 |
| Durkee-Atwood | MR549, MR551, MR594, MR517 |
| Epton | MH91 |
| Ford | 2QC 8286 A, 8HA 8286, AB 8286 A, AD 8286 A, AF 8286 A, AJ 8286 A, B5A 8286 C, B7A 8286 A, B7C 8286 A, C1TT 8286 B, C2TA 8286 A, C2TZ 8286 B, TAAK 8286 A, 7HC 8286 B, C5NN 8286 B, C5NN 8286 C, TAAA 8286 A, TAAD 8286 A |
| GOODYEAR BELTS | 20-135567 |
| General Motors | 3295646, 3709444, 3732944, 3822596, 3867025, 3885462, 3891554, 5743332 |
| Goodyear | 60195, 60113 |
| Hyster | 377239 |
| Lift Parts | 7767299 |
| Mopar | BH-722, BH-765, BH-768, BH-929 |
| Motorcraft | KM-156, KM-210, KM-3095, KM-474, KM-109, KM-509 |
| NAPA Belts/Hose | 7133 |
| Ultralast | C0145, CO145 |
GATES 20145 Fits Vehicles
- Ford Ford (1949)
- Ford Park Lane Wagon (1956)
- GMC I3500 (1966)
- Checker Deluxe (1970)
- GMC EC252 (1947)
- GMC EC152 (1947)
- GMC EC150 (1947)
- GMC EC102 (1947)
- GMC I1500 (1965-1966)
- GMC PM152-22 (1952-1954)
- GMC 250-24 (1953-1954)
- GMC FC100-22 (1952)
- Pontiac Laurentian (1955-1957)
- Chevrolet Sedan Delivery (1955-1958)
- GMC PM150-24 (1952-1954)
- GMC FC283 (1947)
- GMC EC283 (1947)
- GMC CCV100 (1947)
- GMC CC102 (1947)
- GMC P150-22 (1951-1954)
- GMC 250 (1951-1954)
- GMC FC281 (1947, 1950)
- GMC FC102 (1947-1950)
- GMC FC100 (1947-1952)
- GMC EF241 (1947-1949)
- GMC FC250 (1947-1950)
- GMC EF242 (1948-1949)
- GMC EC250 (1947)
- GMC EC101 (1947)
- GMC CC150 (1947)
- GMC FC152 (1947-1950)
- GMC CCX250 (1947)
- GMC CC250 (1947)
- GMC PM152 (1952, 1954)
- GMC P252 (1951)
- GMC P253 (1951)
- GMC PB1500 Series (1963)
- GMC PM150 (1953)
- GMC P152 (1950-1951)
- GMC PB2500 Series (1963)
- GMC Suburban (1964-1966)
- GMC PB1000 Series (1963)
- GMC 1500 (1966)
- Checker A11 (1970-1972)
- Checker Taxicab (1970-1972)
- Checker A11E (1970-1972)
- GMC I2500 (1965-1966)
- GMC I1000 (1964-1966)
- Ford P-100 (1957-1964)
- Chevrolet Del Ray (1957)
- Pontiac Pathfinder (1955-1957)
- Chevrolet Nomad (1955-1957)
- GMC 100-24 (1953-1954)
- Ford P-350 (1953-1964)
- GMC PM250-24 (1954)
- GMC 150 (1951-1954)
- GMC 253-22 (1952-1953)
- GMC 150-24 (1953-1954)
- GMC PM150-22 (1952-1954)
- GMC 100 (1951-1954)
- GMC 150-22 (1947-1949, 1951-1954)
- Ford F4 (1948-1952)
- Ford Custom (1949-1952, 1957)
- GMC 102-22 (1952-1953)
- Ford F-3 (1948-1952)
- GMC 250-22 (1951-1954)
- GMC FP152 (1949-1950)
- Ford F-1 (1948-1952)
- Ford F-2 (1948-1952)
- GMC 100-22 (1947-1949, 1951-1954)
- GMC FC252 (1947-1950)
- GMC FC253 (1947-1950)
- GMC FC251 (1947-1950)
- GMC FC150 (1947-1952)
- GMC EC282 (1947)
- GMC EC280 (1947)
- GMC FC101 (1947-1950)
- GMC CC101 (1947)
- GMC FC280 (1947, 1950)
- GMC EC251 (1947)
- GMC EC100 (1947)
- GMC CC260 (1947)
- GMC CC100 (1947)
- Chevrolet C30 Panel (1963-1966)
- Chevrolet C10 Panel (1963-1966)
- GMC PM253 (1952-1954)
- GMC PM252 (1952-1954)
- GMC 2500 Series (1964-1965)
- Ford F-350 (1953-1964)
- Ford F-250 (1953-1964)
- Ford F-100 (1953-1964)
- GMC 1500 Series (1964-1965)
- GMC 1000 Series (1964-1965)
- Ford Victoria (1951-1958)
- Ford Sunliner (1952-1958)
- Ford Skyliner (1954-1957)
- Ford Ranch Wagon (1952-1958)
- Ford Mainline (1952-1956)
- Ford Customline (1952-1956)
- Ford Courier Sedan Delivery (1952-1955)
- GMC 2500 (1966)
- GMC 1000 (1966)
- Ford Deluxe (1949-1951)
- Ford Del Rio Wagon (1957-1958)
- Ford Fairlane (1955-1958)
- Ford Crestline (1950-1954)
- Ford Custom 300 (1957-1958)
- Ford Country Squire (1950-1958)
- Ford Country Sedan (1952-1958)
- Ford Club (1954-1958)
- Chevrolet P30 Series (1963)
- Chevrolet P20 Series (1963)
- Chevrolet Two-Ten Series (1955-1957)
- Chevrolet Suburban (1963-1966)
- Chevrolet P10 Series (1963)
- Chevrolet One-Fifty Series (1955-1957)
- Chevrolet K20 Pickup (1963-1966)
- Chevrolet K10 Pickup (1963-1966)
- Chevrolet Camaro (1967-1969)
- Chevrolet C30 Pickup (1963-1966)
- Chevrolet C20 Pickup (1963-1966)
- Chevrolet C10 Pickup (1963-1966)
- Chevrolet Bel Air (1955-1957)
- Checker Marathon (1970-1972)
- Dodge Dakota (1989-1991)
