GATES part description

Product Description

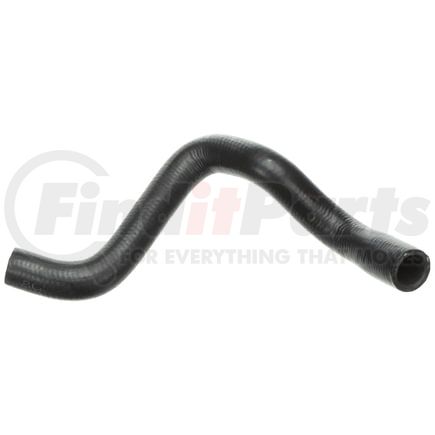

Premium Molded Heater Hose

Application Summary

2003-00 Ford, Focus, 4-Cyl. 2.0 L, Pipe-1 To Thermostat

Features & Benefits

  • Has all the quality features of Gates molded coolant hose and similar to OEM specifications
  • Engineered to resist electrochemical degradation - the leading cause of hose failure
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • EPDM tube, synthetic fiber knit reinforcement, EPDM cover
  • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
  • Temperature Range: -40 Deg. F to 275 Deg. F (-40 Deg. C -135 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 13.8 IN
Branch Quantity 0
End 1 Inside Diameter .61 in
End 2 Inside Diameter .78 in
9845 0
Material EPDM
9839 Yes
Centerline Length 351 MM
End 1 Inside Diameter 15 MM
End 2 Inside Diameter 20 MM

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00072053549607
VMRS Code 042010004
UNSPSC 40142000

Part Interchanges

GATES 19276 Cross Reference

We have 2 alternatives for the 19276 by GATES:

Fits Vehicles

  • Ford Focus (2000-2003)
